Customizing the Trip Data Fields on the Map Screen for a Camper/RV 660 or Camper/RV 770

Your automotive device allows you to customize the data field on the navigation screen.

To Change the Trip Data Field:

1. Touch View Map

2. Touch the data field that does NOT display Speed

3. Touch "+" next to the desired option to save the change

This selected data will now be displayed in the data field while driving.

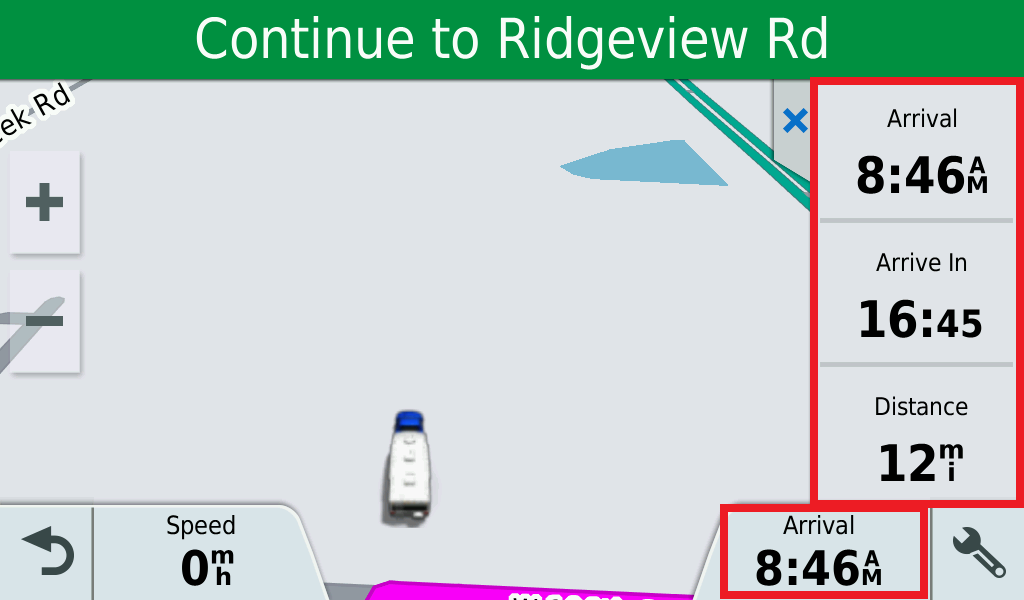

It is possible to Add 3 Additional Data Fields on the Map by Enabling the Trip Data Map Tool on the Device.

To Enable Trip Data:

1. Touch Settings

2. Touch Map & Vehicle

3. Scroll down and touch Map Tools

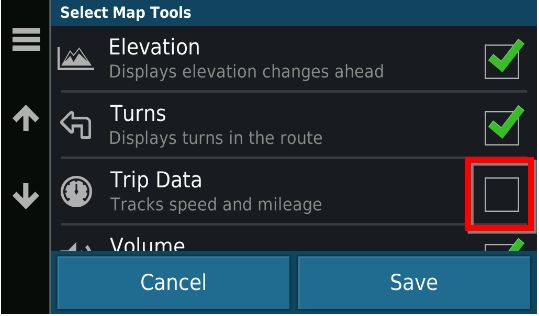

4. Touch the box next to Trip Data to enable it

• • Trip Data is already enabled if a checkmark is in the box.

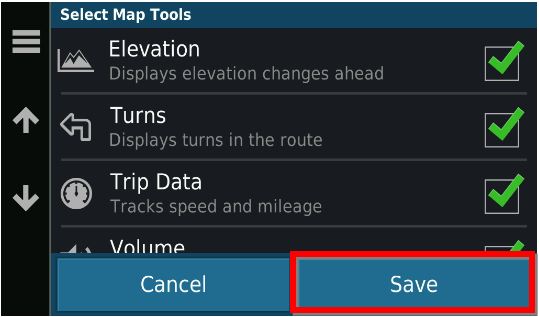

5. Touch Save

6. Hold down the back button

7. Touch View Map

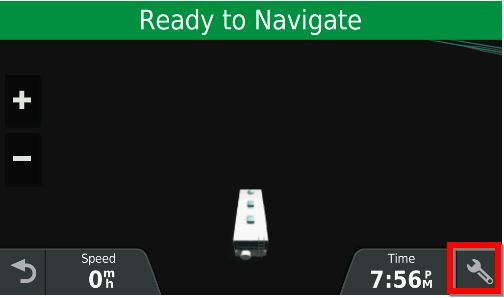

8. Touch the wrench icon in the lower right corner

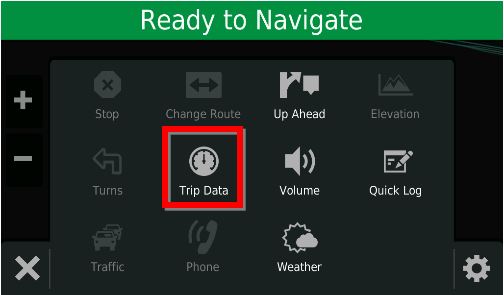

9. Touch Trip Data

You can customize Trip Data by touching any one of them, then touching the + icon next to the desired data type, which will automatically change the type of data displayed.

Your Device Offers the Following Customizable Data Field Options:

• Arrival Time
• Arrive In
• Destination Distance
• Via Point Arrival Time
• Time to Via Point
• Via Point Distance
• Direction
• Time of Day
• Elevation
• Grade
• Temperature (available on devices paired with Smartphone Link App)

Some of these additional data fields will only be available when the device is on an active route.
