Creating, Editing, or Deleting a Trip on a dēzl™ 780 or dēzlCam™ 785 Using Trip Planner

Trips with multiple stops can be saved to your device's internal storage for use at a later date by using the Trip Planner app. The device will store up to 100 trips.

Select the relevant steps below to learn how to use Trip Planner to plan a trip on your device.

Create a Trip

1. Touch the Android menu icon transparent app icon
 2. Touch Navigation if necessary
 3. Touch Trip Planner
 4. Touch New Trip
5. Touch Select Start Location
NOTE: The Start Location is the first stop on the route. You can use your current location as the starting location, but it isn't necessary. The device will skip your current location if that is where you are when it begins to navigate.
6. Select the starting point using the search options
7. Touch Select
8. Touch Add Location to add a second point
9. Follow steps 6 through 8 to locate and add up to 30 total points. Touch a point to show additional options if changes need to be made.

Editing Options

  • Touch the PND - Trip Planner - add stop icon add icon to add a stop between locations
  • Touch the PND icon - wrench 2 wrench icon to change a location
  • Touch to change the order of points
    • Touch and hold the  move icon next to a point and drag it to a location on the list

  • Touch thePND icon - trash 2 delete icon to remove a point
    • Then touch Yes

10. Touch Select Destination and follow steps 6 and 7 to select a destination

11. Touch Next. The route will now calculate

12. Review the route on the map. Touch the Back arrow cropped transparent back arrow if any changes need to be made. Touch Save if no changes need to be made.

13. Type a name for the route and touch Done

The trip is now saved to Trip Planner and can be found under Saved Trips.

Edit a Trip

1. Touch the Android menu icon transparent app icon
2. Touch Navigation if necessary
3. Touch Trip Planner

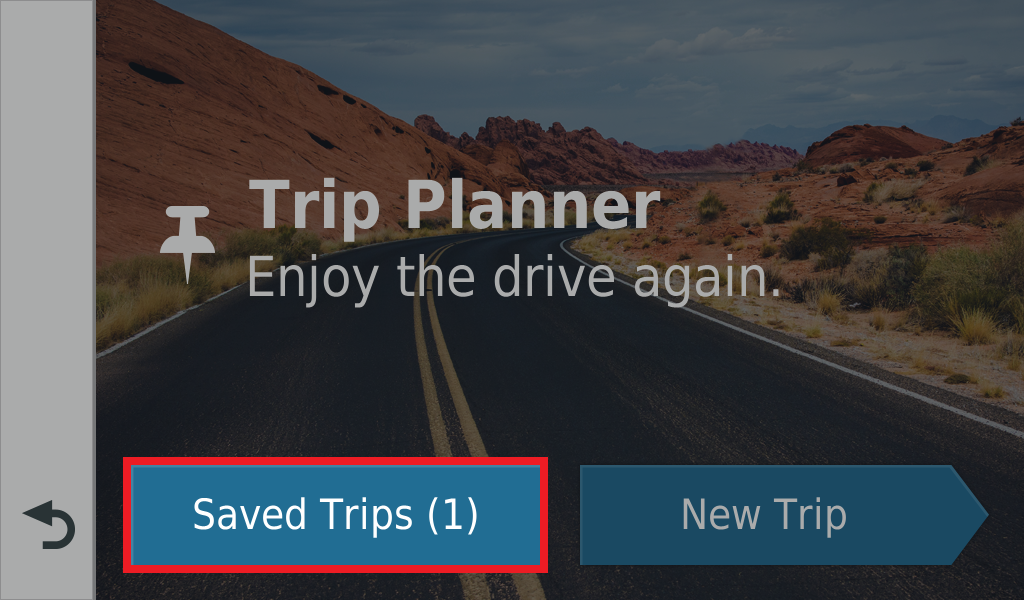

4. Touch Saved Trips
5. Touch the name of the trip
6. Touch a point to show additional options if changes need to be made.

Edit Options

  • Touch the PND - Trip Planner - add stop icon add icon to add a stop between locations
  • Touch the PND icon - wrench 2 wrench icon to change a location

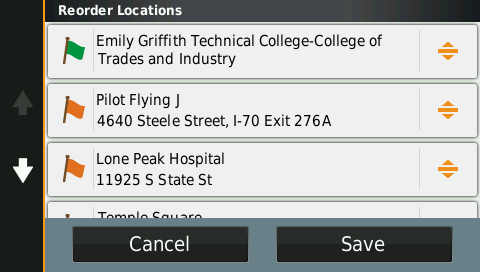

  • Touch to change the order of points
    • Touch and hold the  move icon next to a point and drag it to a location on the list

NOTE: To reverse the order of the trip, the order of points would need to be rearranged manually.  This would replace the trip originally entered and would not create a new trip.

  • Touch thePND icon - trash 2 delete icon to remove a point
    • Then touch Yes

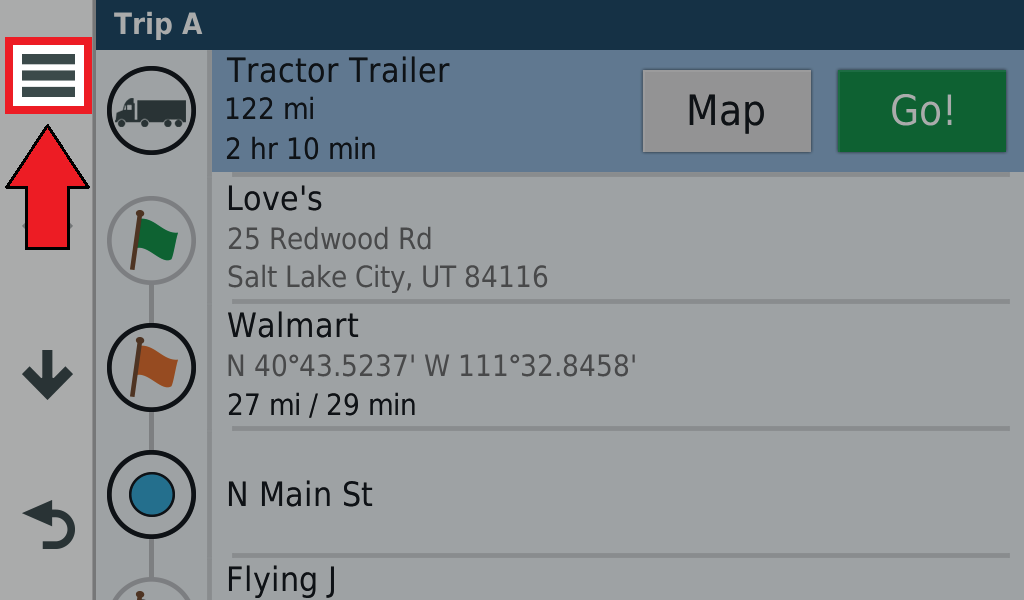

7. Touch the menu icon for more editing options

Select from the following options:

Trip Settings

  • Rename Trip: Change the name of the trip
  • Shape Route
  • Route Preference: Sets the preferred way to route the trip
  • Suggest Attractions: Suggests attractions to add along the route
  • Edit Schedule: Changes the departure and arrival times
  • Delete Trip: Removes the trip from Trip Planner
  • Optimize Order: Calculate the most efficient order to travel to all the points
    • The start and end points will not be changed
    • You must have at least four points
  • View Turns: Lists turn-by-turn written directions

8. Touch Go! to proceed with navigation.

The device will now calculate and begin the route.

Delete a Trip

1. Touch the Android menu icon transparent app icon
2. Touch Navigation if necessary
3. Touch Trip Planner
4. Touch the Menu icon transparent menu icon
5. Touch Delete Trips
6. Select the trips to delete and touch Delete
7. Touch Yes
The selected trips will now be deleted.

To Navigate a Trip Using Trip Planner

1. Select Apps



 2. Touch Navigation if necessary

3. Select Trip Planner

4. Select Saved Trips

5. Select the Trip



6. Touch Go



7. Select the Next Destination of the Route

  • Select the Green Flag to route from your current location to the beginning of the route and then the full trip

  • Select the Orange Flag to skip the starting location and route from your current location to the waypoint selected in the route and then the remaining trip destinations in order

  • Select the Checkered Flag to route from your current location skipping all the points in the route and taking you the quickest way to the destination point

  • Select the Closest Entry Point to skip the starting location and calculate the quickest way to get on the planned route

    • Feature not available on some devices



8. Touch OK
