Interface WatchMate Vision or Vesper XB to Coastal Explorer

Set up Vesper Marine Wi-Fi transponders with Rose Point Coastal Explorer (CE)?

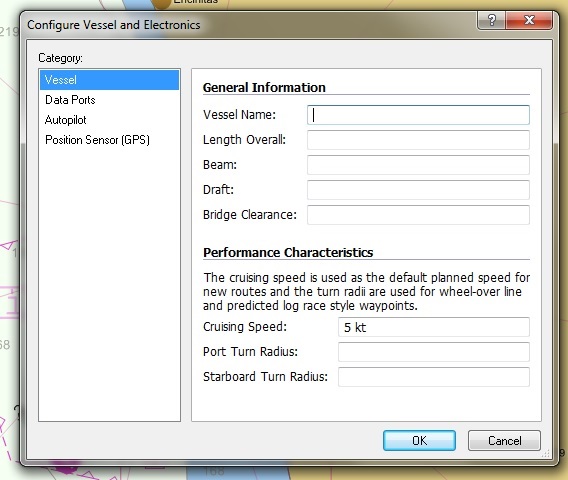

In CE go to Tools > Configure Vessel and Electronics

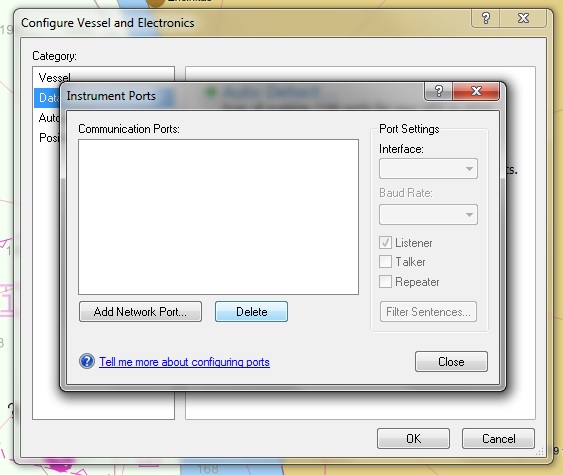

Select Data Ports > click on Port Settings

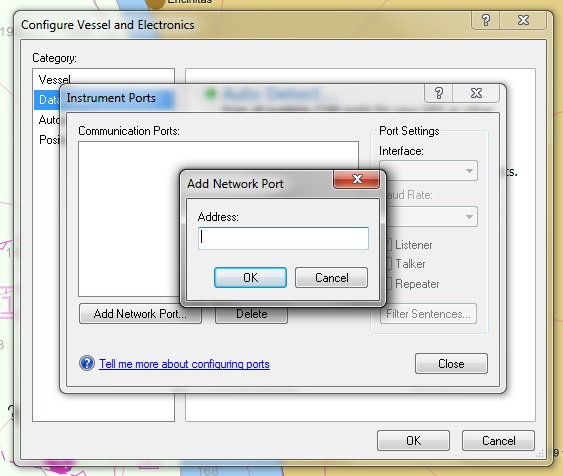

Select Add Network Port



If the default IP address is not changed on the WatchMate Vision or XB8000 transponder, this is the address format:
 192.168.15.1:39150

If changed, adjust these numbers accordingly.

Click OK > close > OK

Finished. Select Instruments to see the boat's position or select Vessels to see a list of AIS information and activate AIS on the chart selector to display it.
