Using the aera 760’s Own Internal AHRS

The aera® 760 avionics navigator will only be able to use its own internal AHRS if it is panel mounted. If the device is mounted on the yoke, the internal AHRS will not work as expected. The internal AHRS will only work when the unit is in the air or at a higher ground speed. If you are at zero speed, you will see a message on the 3D Vision page labeled “No Attitude Information While On-Ground.”

To Enable the Internal AHRS:

  1. Select 3D Vision in the Home page.


  2. Touch the Menu button on the right side of the screen.


  3. Press More Options.

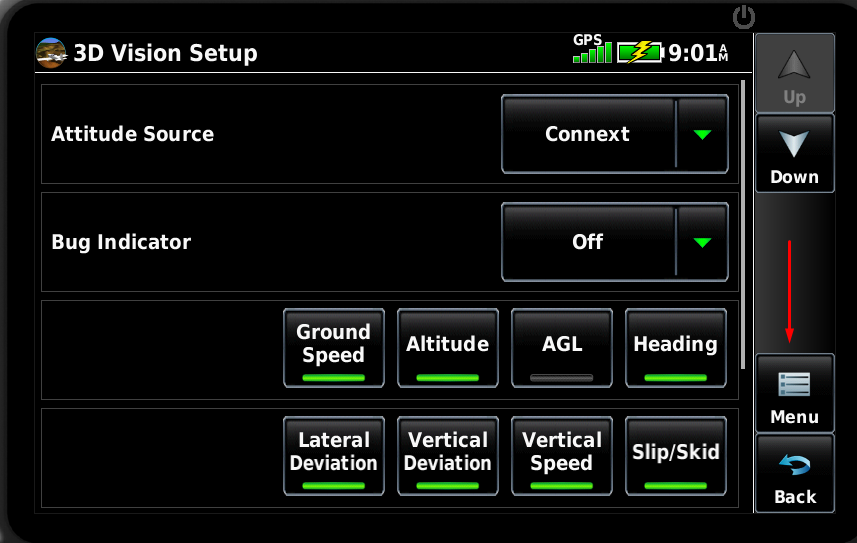

  4. In the 3D Vision Setup page, press Menu on the right-hand side.


  5. Press Enable Panel Mount.


  6. Change the Attitude Source to Internal.
