Pairing Handset to Cortex™ M1 Hub With Software 1.5 or Above

Occasionally the handset may need to be paired or re-paired to the Cortex™ M1 Hub.

Usually the handset and the M1 will pair automatically, but if there is a problem with the pairing, this can be done manually.

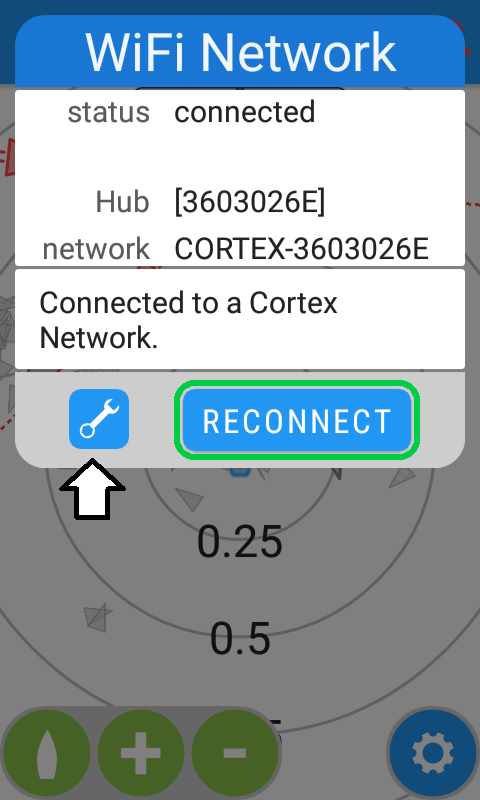

From any view tap the Wi-Fi icon on the top banner.

The Wi-Fi network view will appear.

Tap the wrench icon to be directed to the Cortex add Boat Network view.

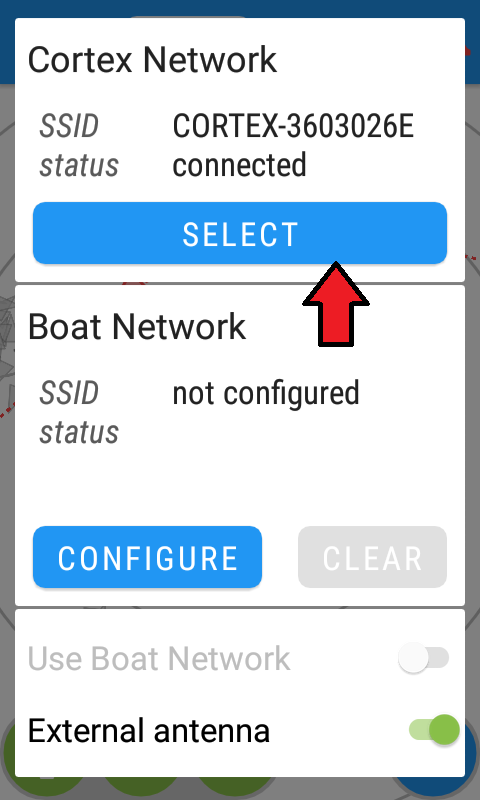

Now tap select. The SSID banner will have an SSID. The box above this banner displays the Wi-Fi SSID's that are being transmitted and being seen in real time.

Tap on the SSID of the device. It will then populate the SSID banner and press select.

The handset should now be re-connected to the M1and the Wi-Fi Icon on the handset and on the M1 POD should show connection (white on handset) green on the M1.
