Creating, Editing, or Deleting a Trip on a zūmo 396 LMT-S Using Trip Planner

Creating a multiple-point trip allows navigation among several points. Trips can be saved to the device's internal storage for use at a later date by using Trip Planner. The device will store up to 100 trips.


Create a Trip

1. Touch Apps

PND DA 50 - Trip Planner - main landing

2. Touch Trip Planner

PND zumo 396 - Trip Planner - TP app

3. Touch New Trip

PND zumo 396 - Trip Planner - new trip

4. Touch Select Start Location

  • Note: The Start Location is the first stop on the route.

PND DA 50 - Trip Planner - select start 1

5. Locate the starting point using the search options

PND zumo 396 - Trip Planner - select location

6. Touch Select

PND zumo 396 - Trip Planner - select start

7. Touch Add Location to add a second point

PND zumo 396 - Trip Planner - add location

8. Follow steps 6 through 8 to locate and add up to 30 total points. Touch a point to show additional options.

PND zumo 396 - Trip Planner - location options


Additional Options

  • Touch the PND - Trip Planner - add stop icon add icon to add a stop between locations.
  • Touch the PND settings wrench v2 wrench icon to change a location.
  • Touch RV 785 - Trip Planner move icon to change the order of points.
    • Touch and hold the PND - drag icon transparent move icon next to a point and drag it to a location on the list.

PND zumo 396 - Trip Planner - location order

  • Touch the PND - Trip Planner waypoint icon orange flag icon to convert a waypoint into a shaping point.
    • This builds a route passing through that point without navigating to it.
    • The icon will change to a  PND - Trip Planner shaping point blue shaping point icon and the route will recalculate.

PND zumo 396 - Trip Planner - shaping points

  • Touch the VIRB trash transparent cropped delete icon to remove a point.
    • Then touch Yes.

PND DA 50 - Trip Planner - delete point


9. Touch Select Destination and follow steps 5 and 6 to select a final destination

PND zumo 396 - Trip Planner - select destination

10. Touch Next. The route will now calculate

PND zumo 396 - Trip Planner - calculate route

11. Touch Save

PND zumo 396 - Trip Planner - save route

12. Type the desired name for the route and touch Done


Edit a Trip

1. Touch Apps

PND DA 50 - Trip Planner - main landing

2. Touch Trip Planner

PND zumo 396 - Trip Planner - TP app

3. Touch Saved Trips

PND zumo 396 - Trip Planner - saved trips

4. Touch the name of a trip

PND zumo 396 - Trip Planner - select trip

5. To edit the locations, touch a location and choose an option

PND zumo 396 - Trip Planner - edit location 2


Location Editing Options

  • Touch the PND - Trip Planner - add stop icon add icon to add a stop between locations.
  • Touch the PND settings wrench v2 wrench icon to change a location.
  • Touch RV 785 - Trip Planner move icon to change the order of points.
    • Touch and hold the PND - drag icon transparent move icon next to a point and drag it to a location on the list.

PND zumo 396 - Trip Planner - location order

  • Touch the PND - Trip Planner waypoint icon orange flag icon to convert a waypoint into a shaping point.
    • This builds a route passing through that point without navigating to it.
    • The icon will change to a  PND - Trip Planner shaping point blue shaping point icon and the route will recalculate.

PND zumo 396 - Trip Planner - shaping points

  • Touch the VIRB trash transparent cropped delete icon to remove a point.
    • Then touch Yes.

PND DA 50 - Trip Planner - delete point


6. Touch the PND settings wrench v2 wrench icon for more editing options

PND zumo 396 - Trip Planner - trip options

Select from the following options:

  • Share: Transfer the trip to another zūmo device.

    • Routes can be shared over Bluetooth, an SD card, or the Smartphone Link app.

  • Route Preference: Sets the preferred way to route the trip.

  • Suggest Attractions: Suggests attractions to add along the route.

  • Shape Route

  • Optimize Order: Calculate the most efficient order to travel to all the points.

    • The start and end points will not be changed.

    • You must have at least four points.

  • View Turns: Lists turn-by-turn written directions.

  • Delete Trip: Removes the trip from Trip Planner.

  • Rename Trip: Changes the name of the trip.

  • Edit Schedule: Changes the departure and arrival times.

7. Touch Go! to proceed with navigation.


Delete a Trip

1. Touch Apps

PND DA 50 - Trip Planner - main landing

2. Touch Trip Planner

PND zumo 396 - Trip Planner - TP app

3. Touch Saved Trips

PND zumo 396 - Trip Planner - saved trips

4. Touch the PND settings wrench v2 wrench icon

PND zumo 396 - Trip Planner - edit trips

5. Touch Delete Trips

PND zumo 396 - Trip Planner - delete trips

6. Select the trips to delete and touch Delete

PND DA 51 - Trip Planner - select and delete trip

7. Touch Yes

PND DA 50 - Trip Planner - confirm delete trip


To Navigate a Trip Using Trip Planner

1. Touch Apps

PND DA 50 - Trip Planner - main landing

2. Touch Trip Planner

PND zumo 396 - Trip Planner - TP app

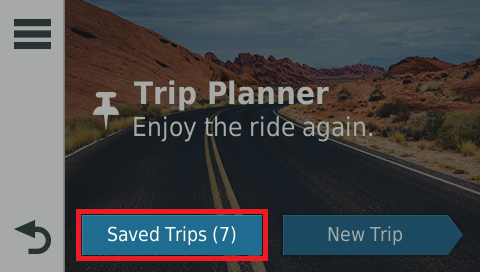

3. Touch Saved Trips

PND zumo 396 - Trip Planner - saved trips

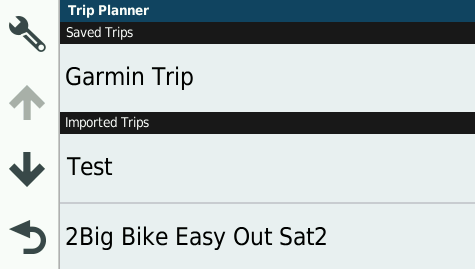

4. Select the Trip

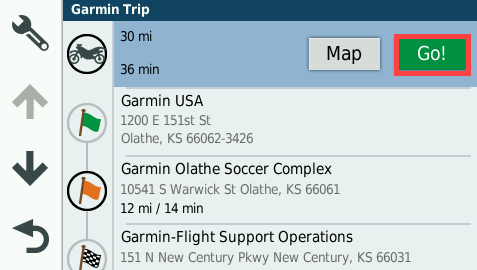

5. Touch Go!

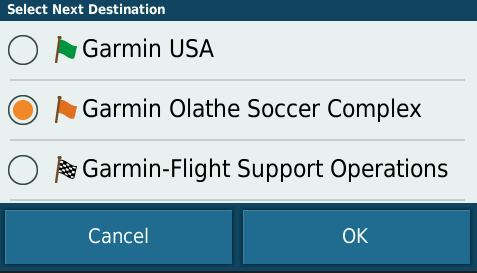

6. Select the Next Destination of the Route

  • Select the Green Flag to route from your current location to the beginning of the route, and then the full trip.

  • Select the Orange Flag to skip the starting location and route from your current location to the waypoint selected in the route, and then the remaining trip destinations in order.

  • Select the Checkered Flag to route from your current location skipping all the points in the route and taking you the quickest way to the destination point.

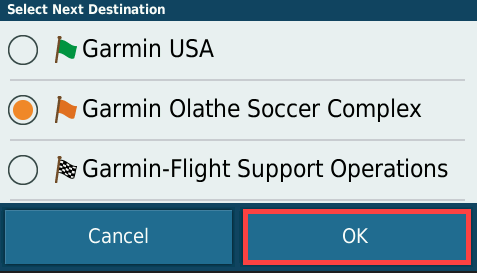

7. Touch OK

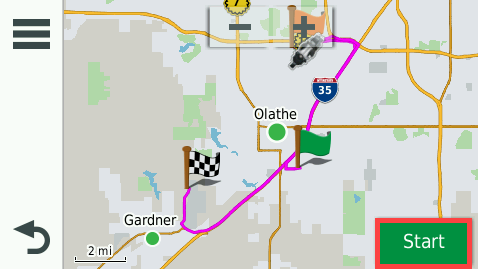

8. Touch Start
