Viewing the Truck Profile

You can edit a vehicle profile to change vehicle information or add detailed information to a new vehicle profile, such as the vehicle identification number, trailer number, or odometer reading. The information found in the vehicle profile may also be requested for troubleshooting purposes.

To Open or Edit the Vehicle Profile:

1. Touch Tools

• • Skip this step on some devices

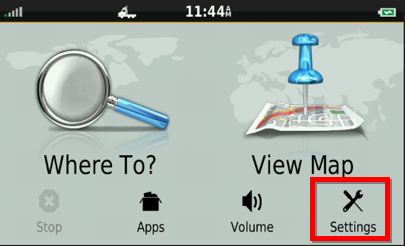

2. Touch Settings

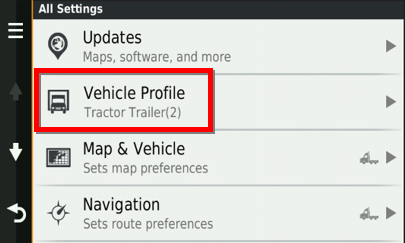

3. Touch Vehicle Profile

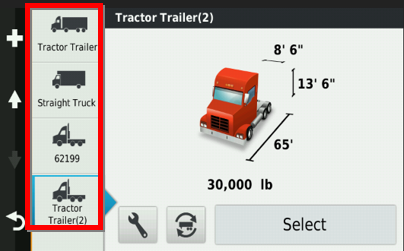

4. Select the profile

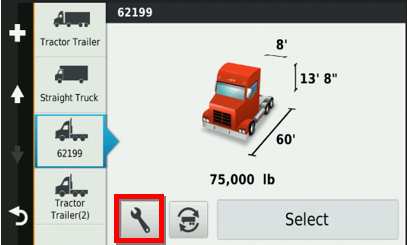

5. Touch the wrench icon

You Can View/Edit the Following Fields from this Screen:

• Height: Measurement from the ground to the highest point on the tractor or trailer

• Width: Measurement of the widest point of the tractor or trailer

• Overall Length: Measurement of tractor and trailer from end to end combined

• Gross Weight: Ensure the actual weight of the vehicle has been set for the gross and axle weight on the profile, and not the maximum possible weight of the vehicle

  • Setting the profile for the maximum possible weight may result in unneeded restrictions

• Max Weight per Axle:  Trucking Devices and Axle Weights

• Number of Axles: The total number of axles on the semi-trailer being pulled by the truck tractor

• Max Speed: If you're governed by speed, enter your maximum speed to create a more realistic Estimated Time of Arrival

  • Setting the max speed may also adjust the routing course and provide additional route suggestions

• Odometer: Miles on the tractor

• VIN: Vehicle VIN number

• Tractor Number: The DOT or MC number assigned to the truck tractor
