How do I Load an Arrival into my GTN (XI) ?
Only one arrival can be loaded at a time in a flight plan. A Standard Terminal Arrival (STAR) can be loaded at any airport with a published arrival procedure. If an arrival is loaded when another arrival is already in the active flight plan, the new arrival replaces the previous arrival. The route is defined by the selection of an arrival, the transition waypoint, and a runway.

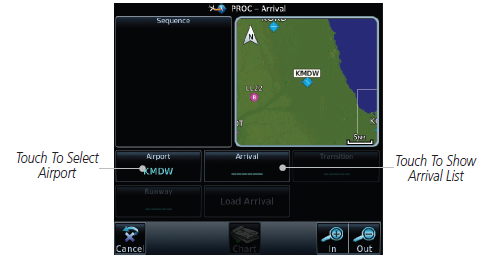

- Touch the PROC key on the Home page and then touch the Arrival key. Confirm that the intended airport is shown, or touch the Airport key and select the desired airport.

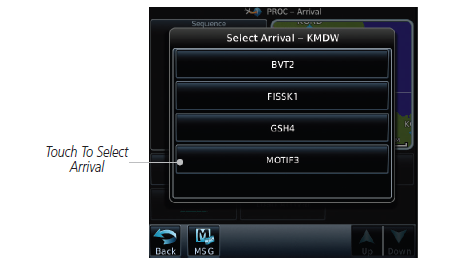

- Touch to select the desired Arrival.

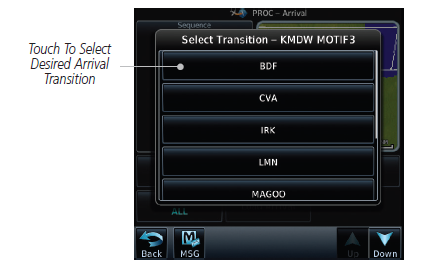

- Touch the Transition key and then touch the key for the desired transition.
- Touch the key for the desired Runway, if necessary.
- NOTE: If the selected runway is depicted as RW10B, for instance, this means both runways 10L and 10R.

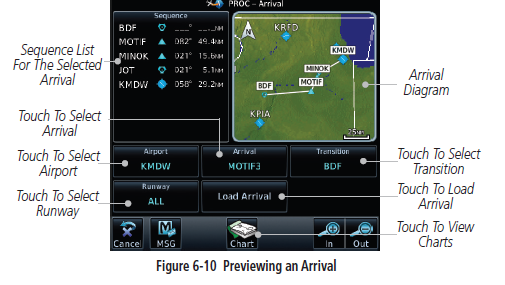

- After selecting the runway, the Arrival page with a map preview will be displayed.

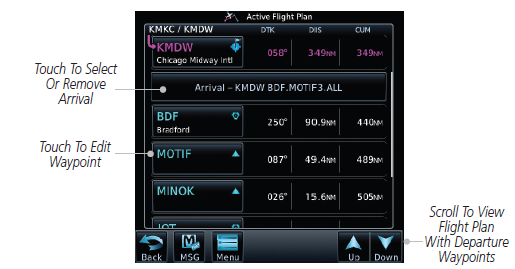

- Touch the Load Arrival key. The Active Flight Plan page will be displayed.
NOTE: If using Descent VNAV, verify that the altitudes for the selected procedure match the charted altitudes and are appropriate for the airframe type.
