Customizing the Trip Data Fields on the Map Screen for an Automotive Device

Your automotive device allows you to customize the data fields on the navigation screen.

dēzl™ LGV810, dēzl™ OTR810, dēzl™ LGV820, dēzl™ OTR820, dēzl™ LGV1010, dēzl™ OTR1010, dēzl™ LGV1020, and dēzl™ OTR1020 GPS navigator

 To Change the Trip Data Field:

1. Touch View Map



2. Touch a data field that does not display Speed



3. Touch "+" next to the desired option to save the change

This selected data will now be displayed in the data field while driving.

It is possible to add additional data fields on the map by enabling the Trip Data map tool on the device.

To Enable Trip Data:

1. Touch View Map

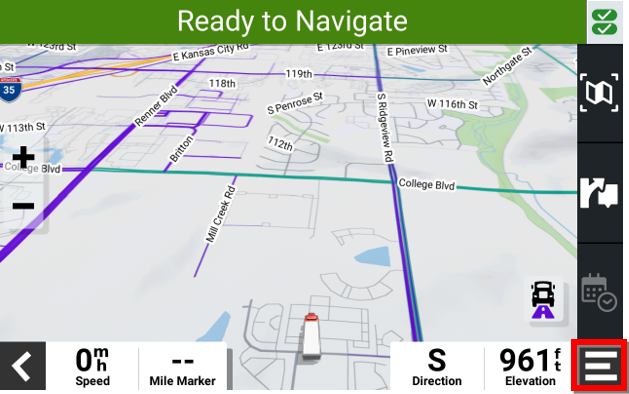

2. Touch the otr1010 menu bar icon menu button in the lower right corner

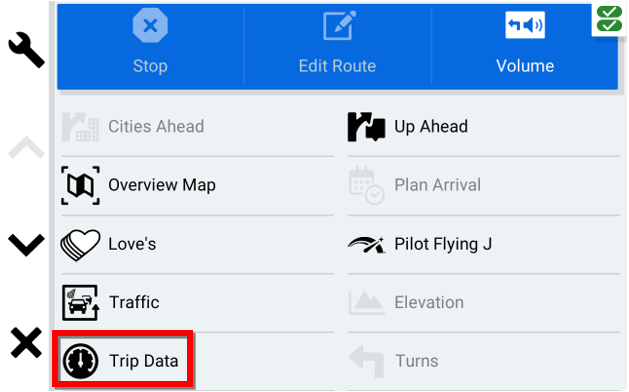

3. Touch Trip Data

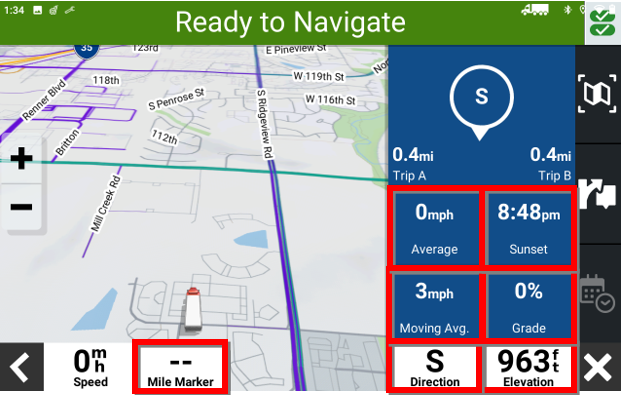

Additional data fields will appear on the right side of the screen. You can customize these by touching any one of them, then touching the + icon next to the desired data type, which will automatically change the type of data displayed.

  • The dēzl™ LGV/OTR810 and dēzl™ LGV/OTR1010 will have four additional data fields.



Your Device May Offer the Following Customizable Data Field Options:

Available with or without routeAvailable during active route only
  • Temperature
  • Next Mile Marker
    • Not available on all highways
  • Direction
  • Elevation
  • Grade
  • Time of Day
  • Sunrise/ Sunset Time
  • Trip Distance Traveled
  • Trip Moving Average Speed
  • Trip Average Speed
  • Trip Max Speed
  • Trip Stopped Time
  • Trip Moving Time
  • Trip Time
  • Total Moving Average Speed
  • Total Average Speed
  • Total Max. Speed
  • Total Stopped Time
  • Total Moving Time
  • Total Time
  • Off Course
  • Trip A
  • Trip B
  • Location
  • GPS Accuracy
  • Arrival time
  • Time to destination
  • Distance to destination
  • Next stop arrival time
  • Time to next stop
  • Distance to the next stop
  • Distance to turn
  • Time to turn

All Other Devices

To Change the Data Field:

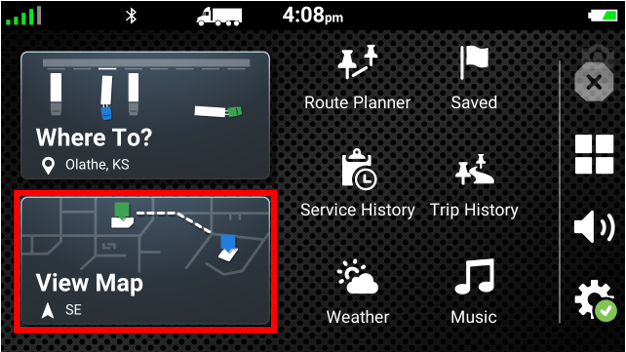

1. Touch View Map

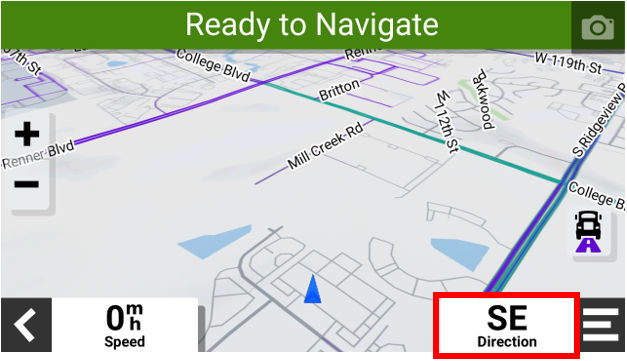

2. Touch a data field that does not display Speed



3. Touch "+" next to the desired option to save the change

This selected data will now be displayed in the data field while driving.

It is possible to add additional data fields on the map by enabling the Trip Data map tool on the device.

To Enable Trip Data:

1. Touch View Map

2. Touch the otr1010 menu bar icon menu button in the lower right corner

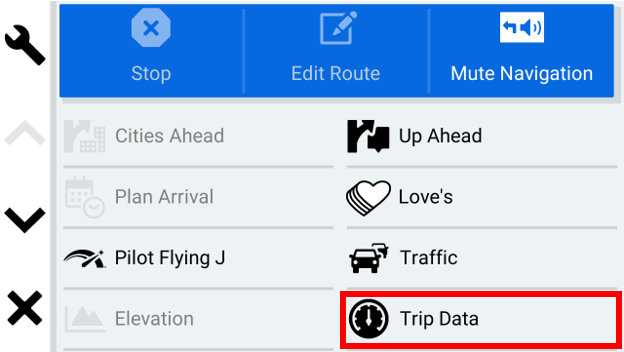

3. Touch Trip Data

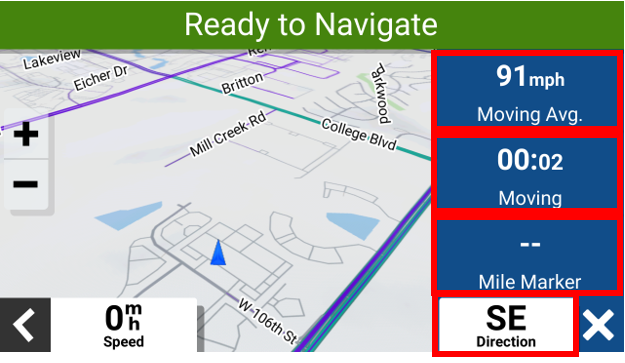

Additional data fields will appear on the right side of the screen. You can customize these by touching any one of them, then touching the + icon next to the desired data type, which will automatically change the type of data displayed.



Your Device May Offer the Following Customizable Data Field Options:

Available with or without routeAvailable during active route only
  • Temperature
  • Next Mile Marker
    • Not available on all highways
  • Direction
  • Elevation
  • Grade
  • Time of Day
  • Sunrise/ Sunset Time
  • Trip Distance Traveled
  • Trip Moving Average Speed
  • Trip Average Speed
  • Trip Max Speed
  • Trip Stopped Time
  • Trip Moving Time
  • Trip Time
  • Total Moving Average Speed
  • Total Average Speed
  • Total Max. Speed
  • Total Stopped Time
  • Total Moving Time
  • Total Time
  • Off Course
  • Trip A
  • Trip B
  • Location
  • GPS Accuracy
  • Arrival time
  • Time to destination
  • Distance to destination
  • Next stop arrival time
  • Time to next stop
  • Distance to the next stop
  • Distance to turn
  • Time to turn
