Is Synthetic Vision included with my G500 TXi?



The G500 TXi comes with 10 hours of synthetic vision pre-loaded so that new owners may test it out. Once demo hours expire, if you wish to continue using Synthetic Vision, there is a feature enablement that must be purchased through an authorized Garmin Dealer, or in FlyGarmin.com.

To purchase the enablement in Fly.Garmin.com, go to the "Devices" tab. Once you have added your G500 TXi with its System ID, select the G500 TXi by clicking on it. Scroll down and click on "Buy Enablement" within the Feature Enablements section.

g500 txi buy

Once the enablement is purchased, go back to the "Devices" tab, and select the G500 TXi. Scroll to the bottom on the Device Details page, and select "Install Enablement" within the Feature Enablement section.

txi install

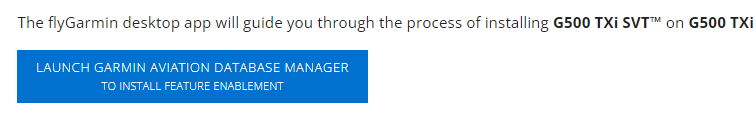

This will take you to the Install Enablements section. Plug your SD Card into your computer and click the blue "Launch Garmin Aviation Database Manager" button to launch the Garmin Aviation Database Manager application.

GADMSVT



Once the Garmin Aviation Database Manager application is open, follow the prompts to install the feature enablement onto your SD Card.

Take the SD Card to the aircraft and plug it into either one of the SD card slots. Power the avionics on. Within a few seconds you will have Synthetic Vision automatically enabled. You can navigate to Menu, and then touch "Terrain SVT" to set it up.

txi svt



To find a Garmin Dealer, please visit the Garmin Dealer Locator.



Click here for more information on the G500 TXi.
