Setting Up, Saving, and Clearing the Track Log on the eTrex H

The eTrex® H outdoor handheld draws an electronic Track Log on the Map page as you travel, and starts recording as soon as the unit gets a location fix. After you have used the eTrex handheld for a few trips, the map display can become a bit crowded from keeping track of your every move. You can clean up the screen by clearing the track log (the lines left on the Map page). You can also save your current track log before clearing it.

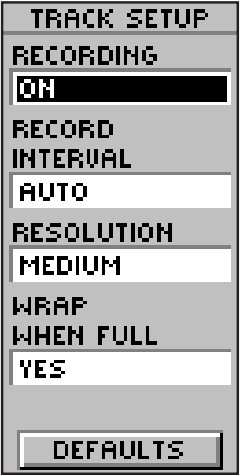

Track Setup

1. From the MENU page, highlight 'TRACKS,' and press ENTER.
2. Highlight 'SETUP,' and press ENTER.
3. Press UP or DOWN to highlight each setup option and make a choice for each. Press PAGE/QUIT to return to the TRACK LOG page.


Saving the Current Track Log

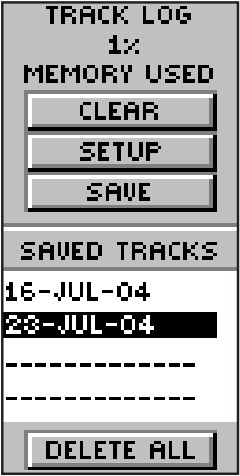

1. From the MENU page, highlight 'TRACKS' and press ENTER. The TRACK LOG page appears.

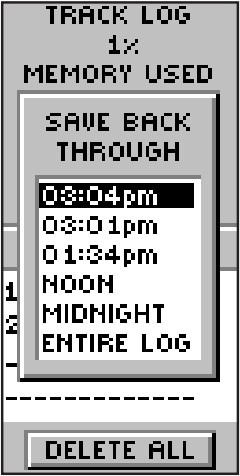

2. Press the UP or DOWN button to highlight 'SAVE,' then press ENTER. The SAVE BACK THROUGH window appears giving you a time frame for saving a track or 'ENTIRE LOG.'

3. Press the UP or DOWN button to highlight 'OK,' then press ENTER.

The track is now saved in the 'SAVED TRACKS' list on the TRACK LOG page.

Clearing the Track Log

1. Press the PAGE button to switch to the MENU page.
2. Press the UP or DOWN button to highlight 'TRACKS.'
3. Press ENTER. You are now on the TRACKS page. Press the UP button to highlight 'CLEAR.' Press ENTER.

4. Press the DOWN button to highlight 'YES.' Press ENTER. Press the PAGE button to select any page.
