Downloading the Auto Guidance+ Feature for use with Garmin Marine Charts
Some chartplotters require a supplemental chart to have the Auto Guidance+™ technology feature. Before it can be used on the device, the chart must be downloaded using the ActiveCaptain® app or the Garmin Express™ program on a computer. If using Garmin Express, the chart is downloaded using a computer and installed on an SD card. The SD card is loaded and inserted into the chartplotter, and the chart reads from the SD card. Download the ActiveCaptain App from the Google Play or Apple App Store. Download the Garmin Express program for Windows or MAC computers.
Chartplotter Series with built-in Auto Guidance+
GPSMAP© 90xx chartplotters | GPSMAP© 92xx chartplotters
GPSMAP© 84xx chartplotters | GPSMAP© 86xx chartplotters
GPSMAP© 7x3 chartplotters | GPSMAP© 9x3 chartplotters | GPSMAP© 12x3 chartplotters | GPSMAP© 16x3 chartplotters
ECHOMAP™ Ultra 2 chartplotters
ECHOMAP™ UHD2 7" chartplotters | ECHOMAP™ UHD2 9" chartplotters
Purchasing and Downloading Charts using the ActiveCaptain app

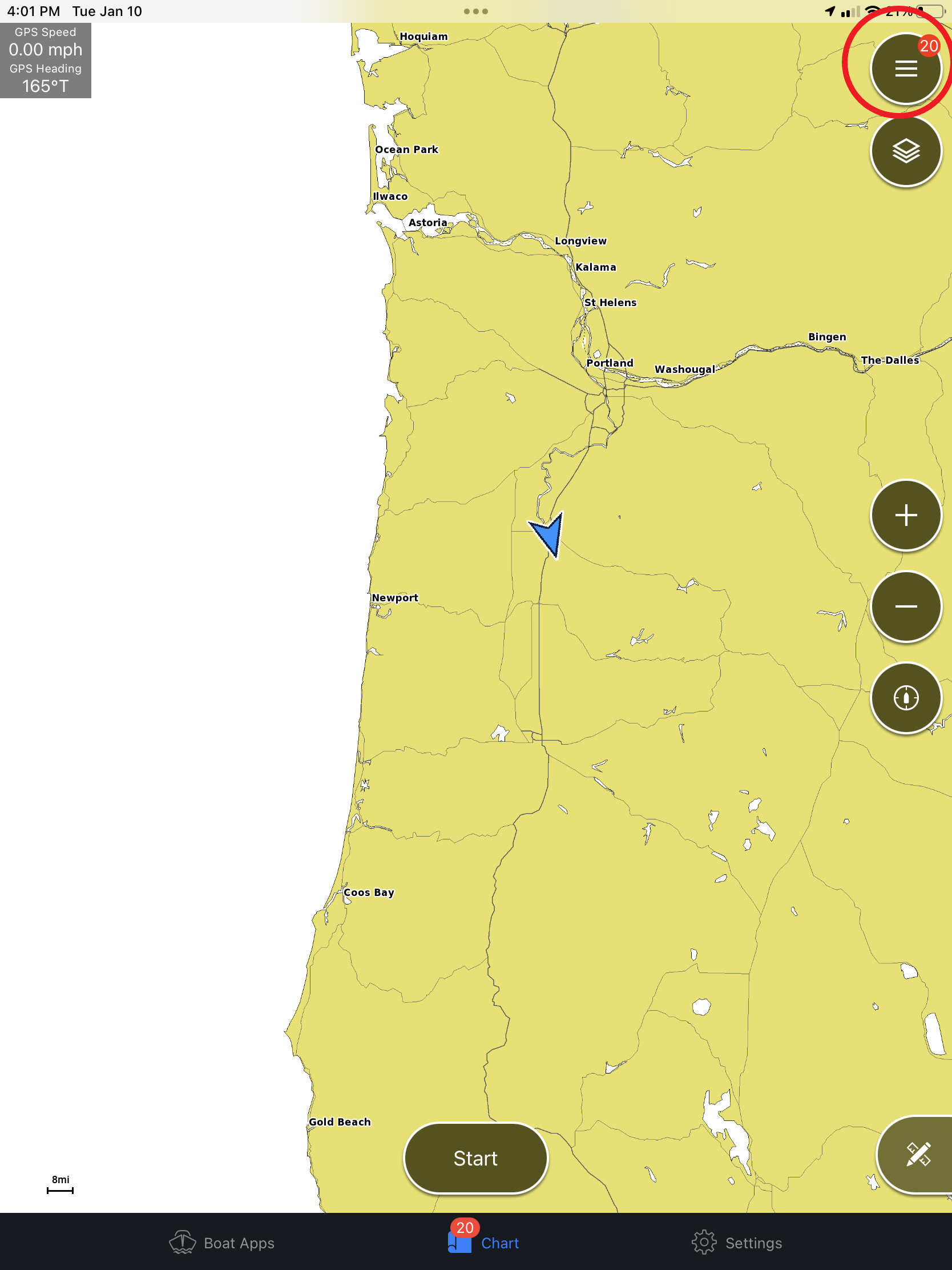

From the chart screen of the app, select the Menu option in the upper right corner of the screen

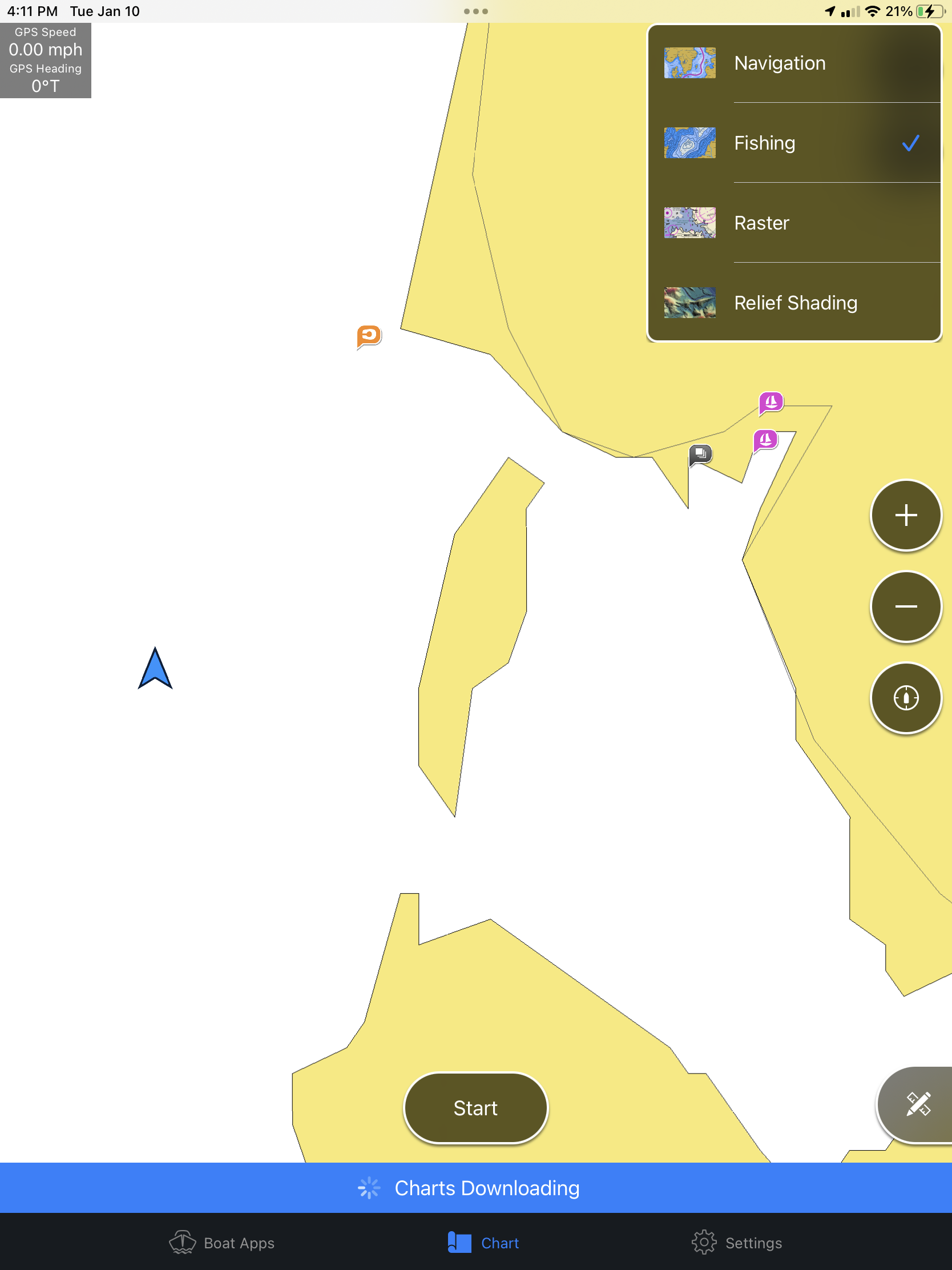

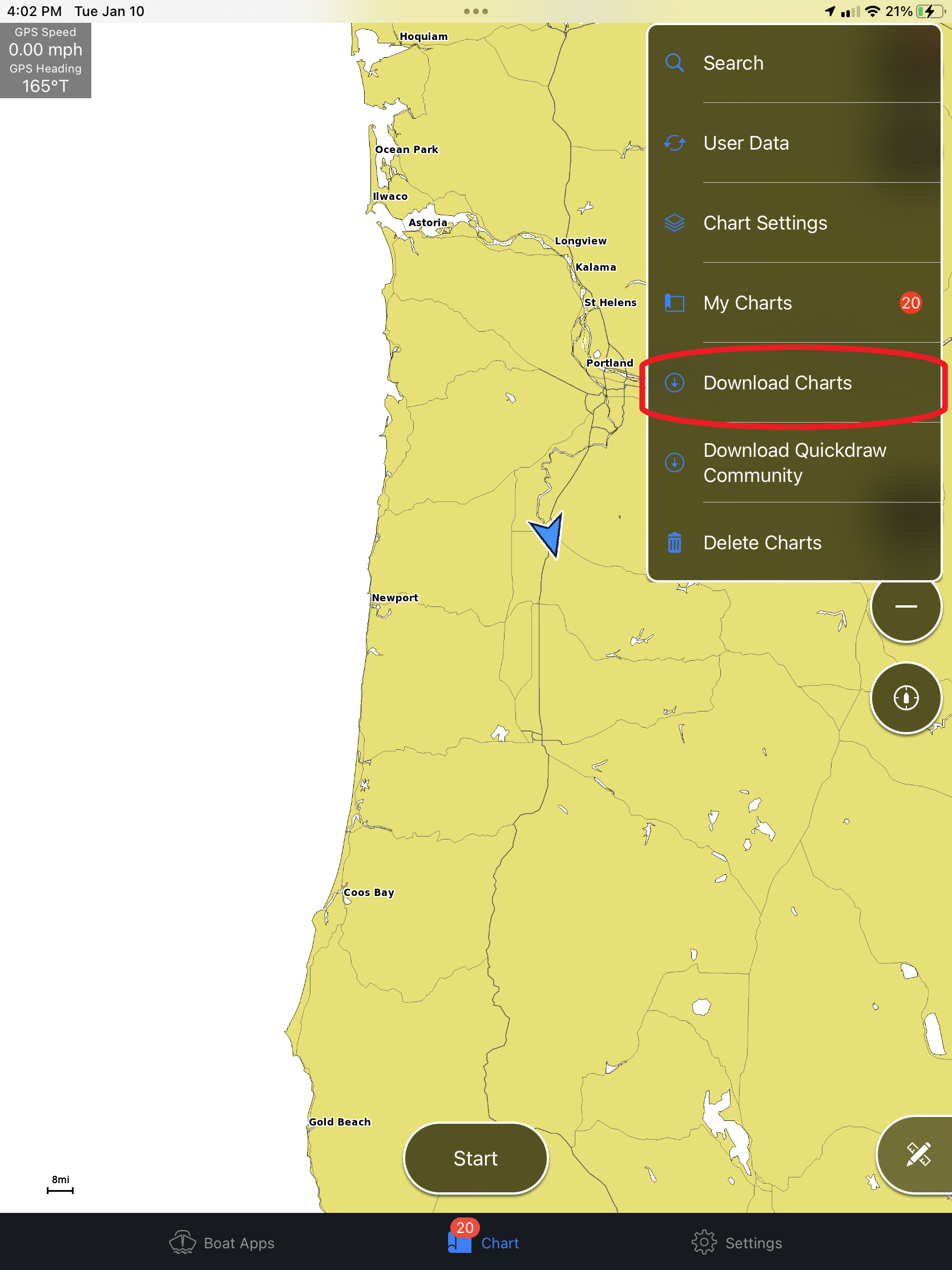

Select Download Charts on the new menu that populates

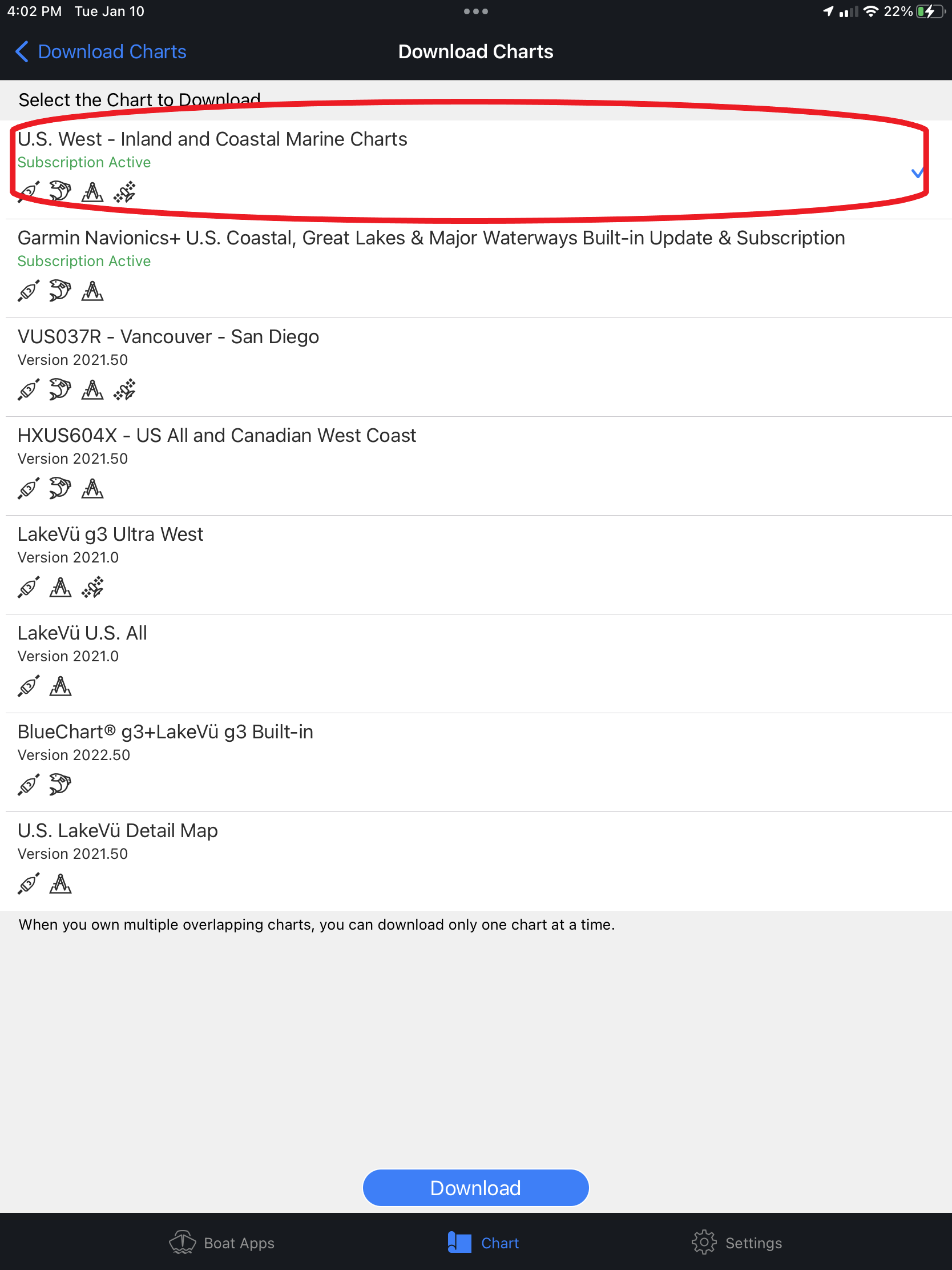

Select the Chart to download from.

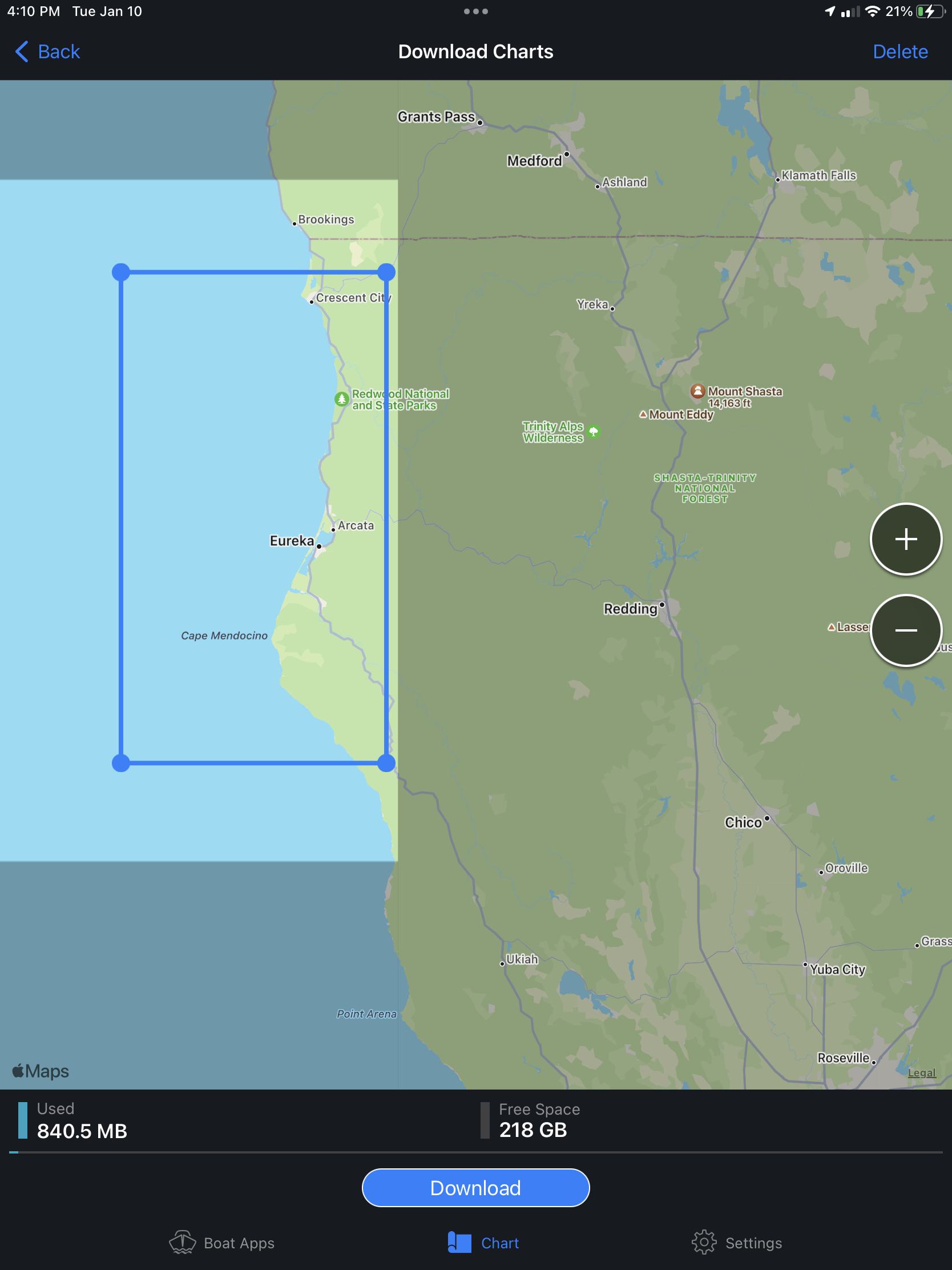

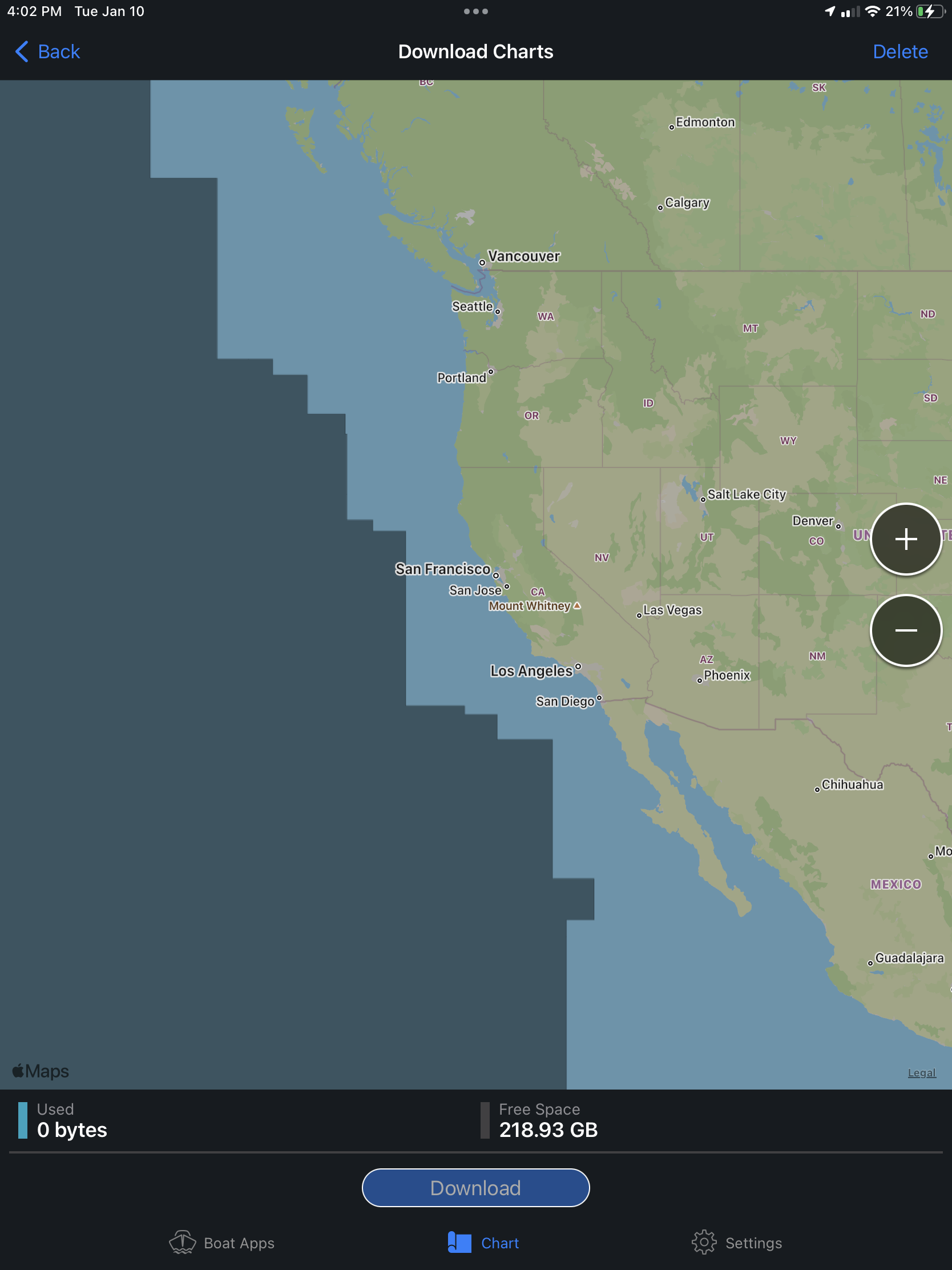

Select the area to download using the selection tool. Once the area is selected the Download button becomes available

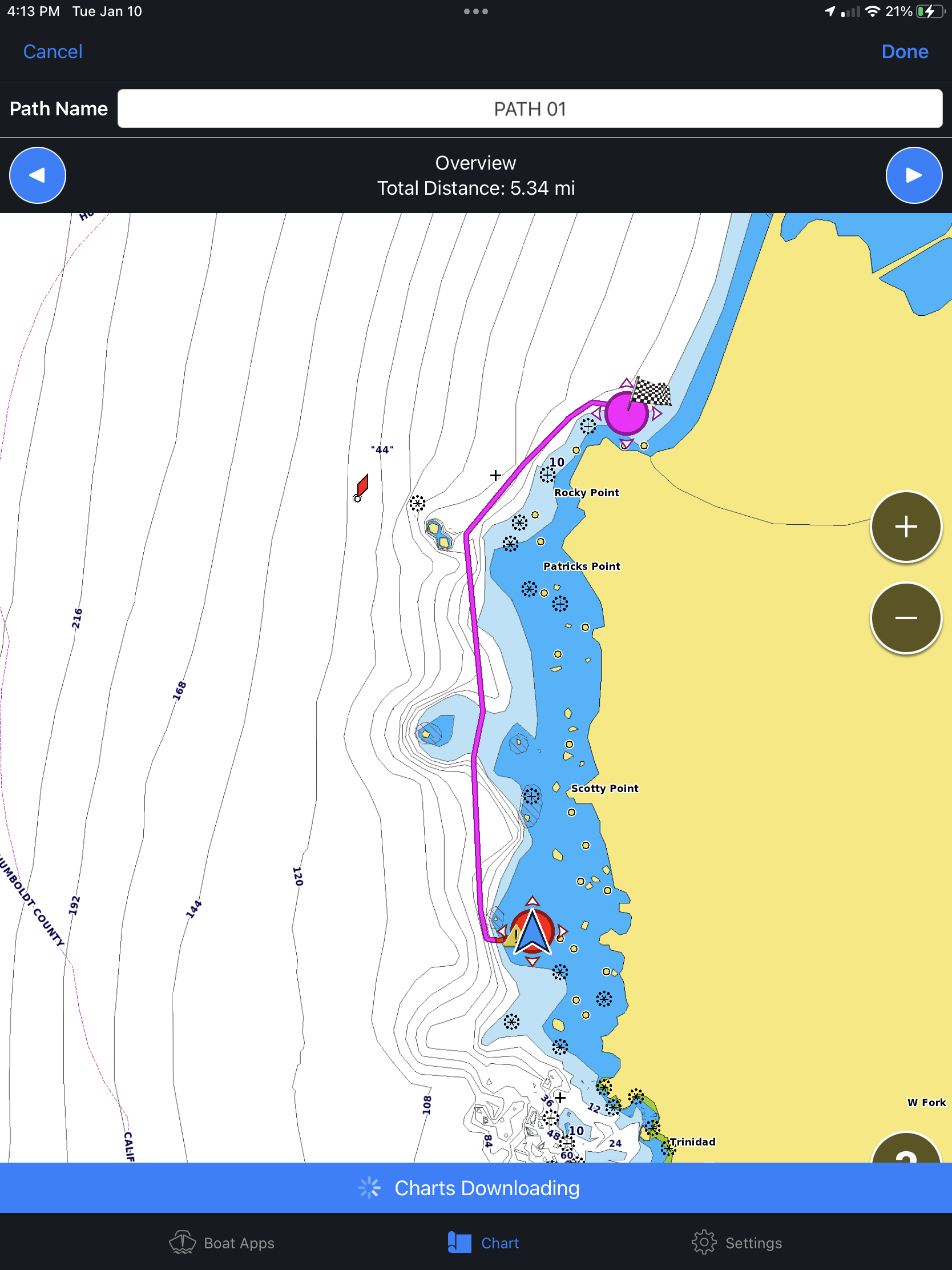

The selected area begins downloading

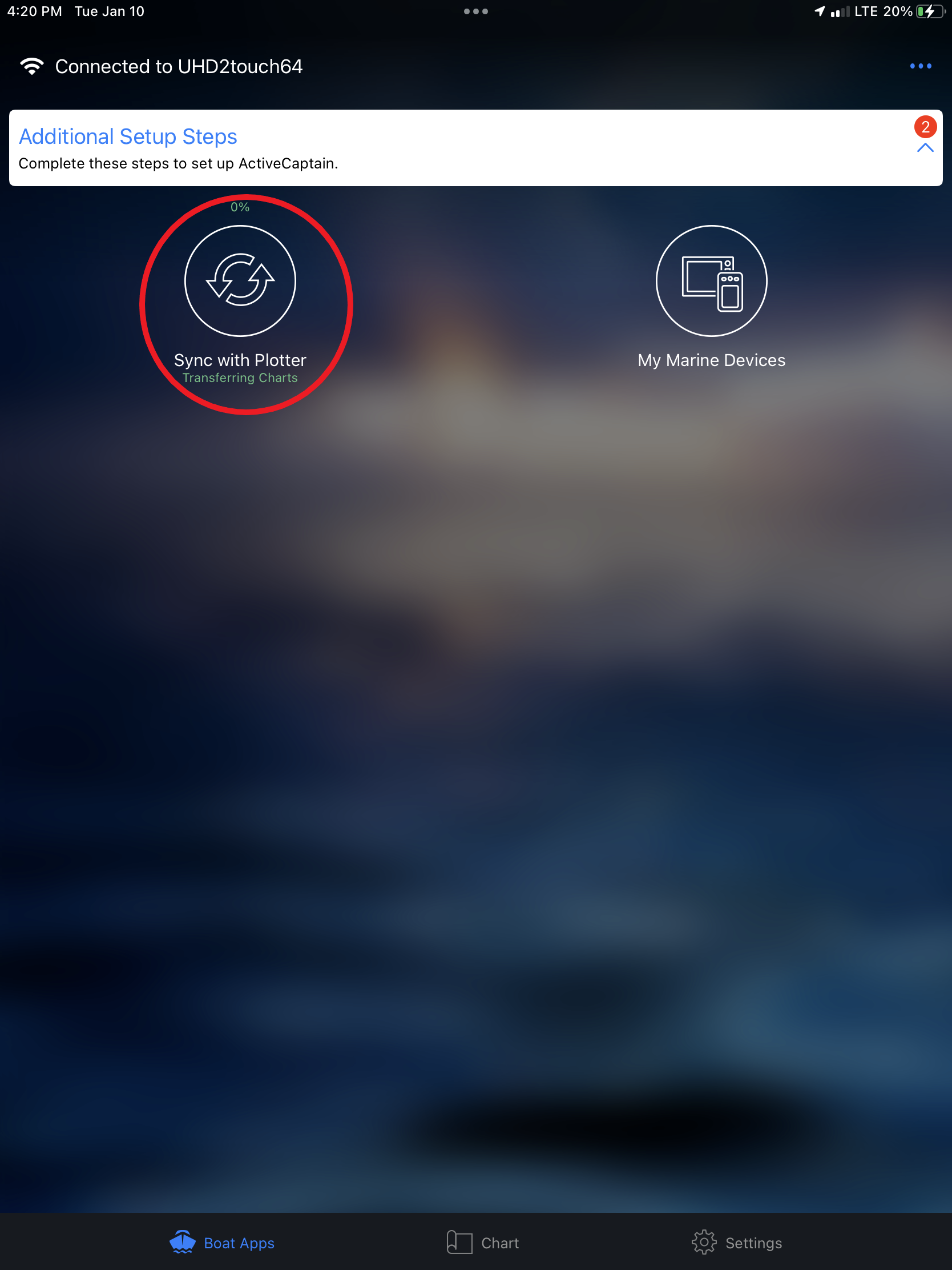

After the download completes, there will be a message stating there are Additional Setup Steps. This will require the mobile device to be connected to the chartplotters Wi-Fi

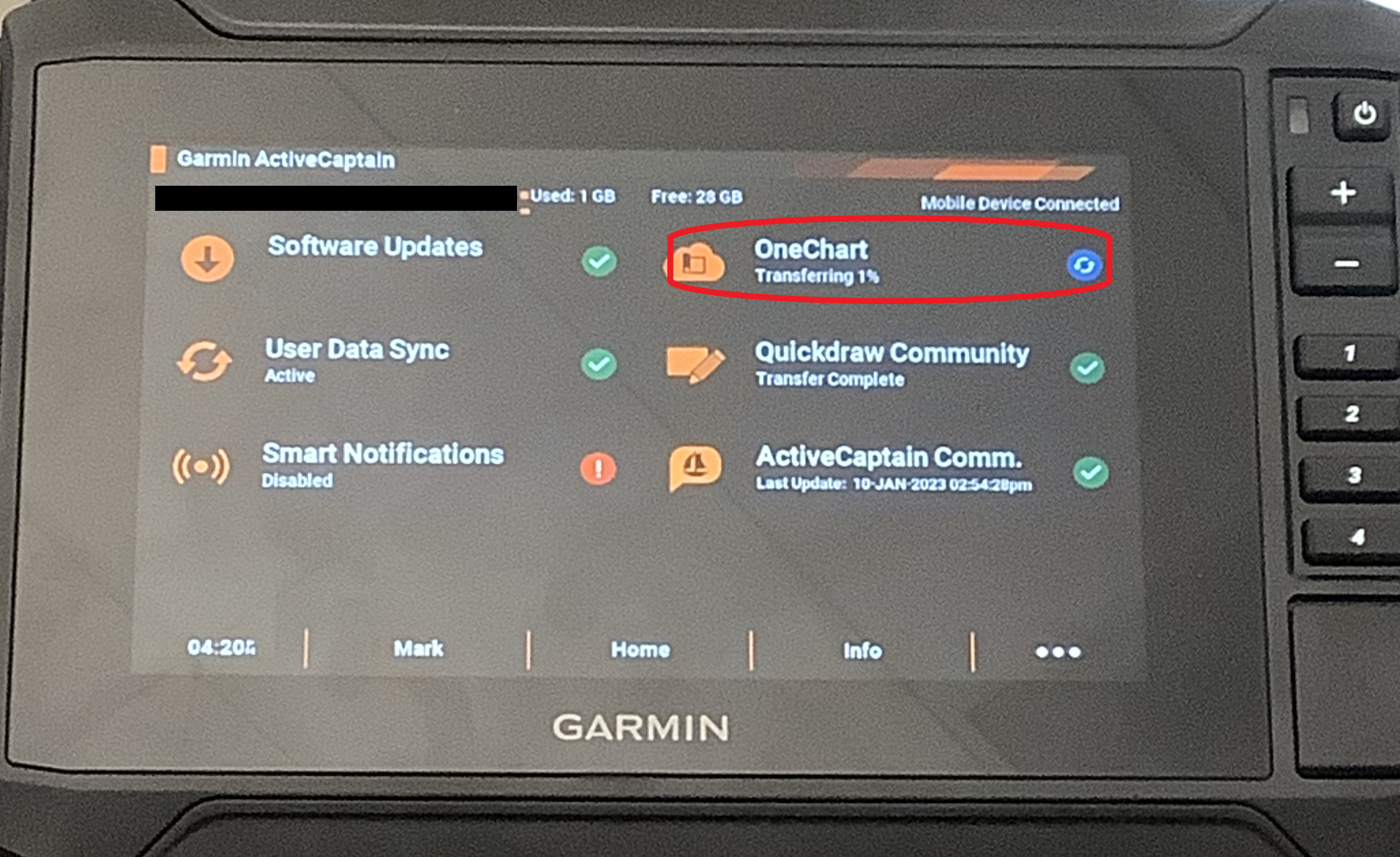

Once connected and Sync with Plotter is selected the transfer between ActiveCaptain and the chartplotter begins
Once the transfer is complete, the Auto Guidance+ Feature is now available for use
Purchasing and Downloading a marine chart using Garmin Express
For instructions on using Garmin Express to download charts see; Downloading Marine Charts to a Chartplotter with Garmin Express™
