Garmin Dash Cam X110, X210 and X310 Status Bar Icons

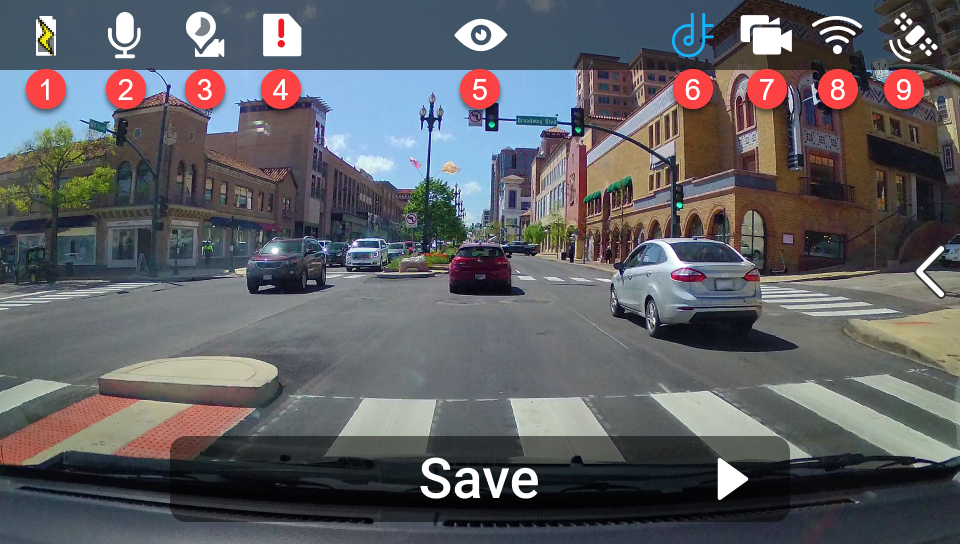

The following screenshot is an example of icons you may see on the status bar of a Garmin Dash Cam™ X110, Garmin Dash Cam™ X210 or Garmin Dash Cam™ X310 driving recorder. See the meaning of each numbered icon below.

1. Battery level

   • A lightning bolt will overlay the battery icon when the device is powered and the battery is charging

2. Audio is recording

   • When audio is not recording, it will show as a microphone with a line through it

3. Travelapse is recording

4. Save alert

5. Dash cam is being remotely viewed

6. Garmin Drive™ app connection is active when blue

   • Garmin Drive app is not connected or is remote when white

   • Garmin Drive app has encountered an error when an exclamation point is present

7. Multiple camera network

   • Multiple dash cameras (up to four) are connected via the Garmin Drive app

8. A standard Wi-Fi network connection is active

   • Wi-Fi symbol is rounded when the phone is connected to the camera's Wi-Fi, for example when viewing video, a live view, or updating software

   • Wi-Fi symbol may include a slash for no Wi-Fi, an exclamation point for a Wi-Fi error, and a green arrow indicating Vault videos are ready to upload or are being uploaded

9. GPS satellite signal

   • When the GPS satellite signal is not yet acquired, this is shown without waves

NOTE: A memory card low on space icon may also appear in status bar
