Properly Wrapping the Coil Cable When Servicing the Garmin Force Kraken

To properly wrap the coil cable when servicing the Garmin Force Kraken, wrap the coil cable around the shaft, making sure to count after orienting the forward portion of the shaft cap to match the direction of the front of the prop motor.  The number of coils is dictated by the length of the shaft:

    • 63" = 5 coils

    • 75" = 6 coils

    • 90" = 7 coils

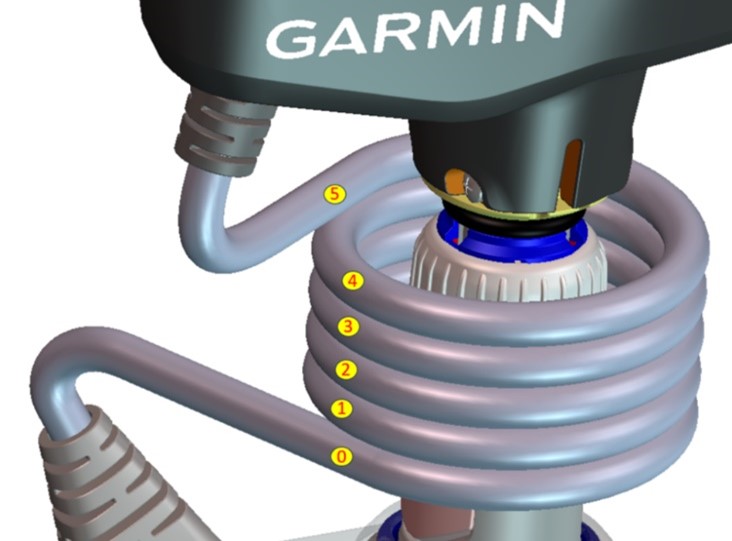

Coil Cable wrapped around shaft

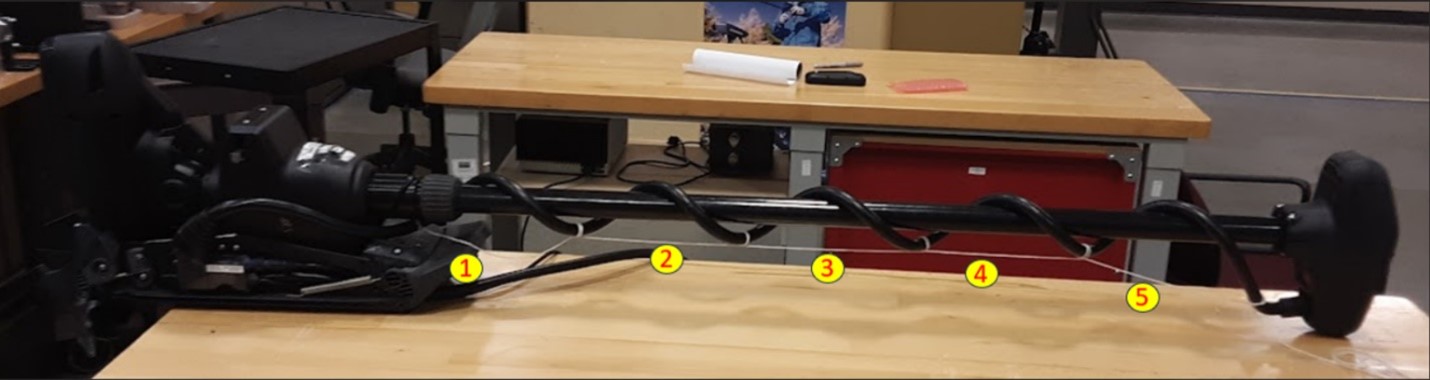

Kraken Coil wrapped around shaft
