GPSMAP® Touchscreen Capabilities through USB
When setting up connections for sending and receiving touch all cable connections should be established in a dry environment. To see the external display on the a GPSMAP® chartplotter/ MFD/ Black Box an HDMI connection is required. Likewise, for viewing GPSMAP® chartplotter/ MFD/ Black Box content on an external display a HDMI connection is required.
Note:
• To avoid potential communication errors, you should use the correct USB cable for your GPSMAP® chartplotter/MFD/Black Box. You should not use an adapter to change the USB connector type on an older cable.
• To prevent corrosion due to moisture, you must use Garmin® accessory cables when establishing connections. Using different cables voids warranty.
When referring to the charts keep in mind the following definitions regarding connections to and from the GPSMAP® chartplotter/MFD/Black Box to an external device.
Ports:
USB Host: The port which will be receiving input.
USB OTG: Can be used as as Host Port (receiving touch input) or Client Port (sending touch input) depending on the accessory cable utilized on the port.
USB DRD: The next generation of OTG which allows the GPSMAP® chartplotter/MFD/Black Box to act as either a Host or Client for inputting or outputting touch to another device. Utilizes USB-C.
GPSMAP® Touchscreen Examples, Cables and USB Port Connections
Device | Example Scenario | Provides Touch Control for Another Display | Required Connections | Allows an External Source to Input Touch Control on GPSMAP® Chartplotter/MFD/Black Box | Required Connections |

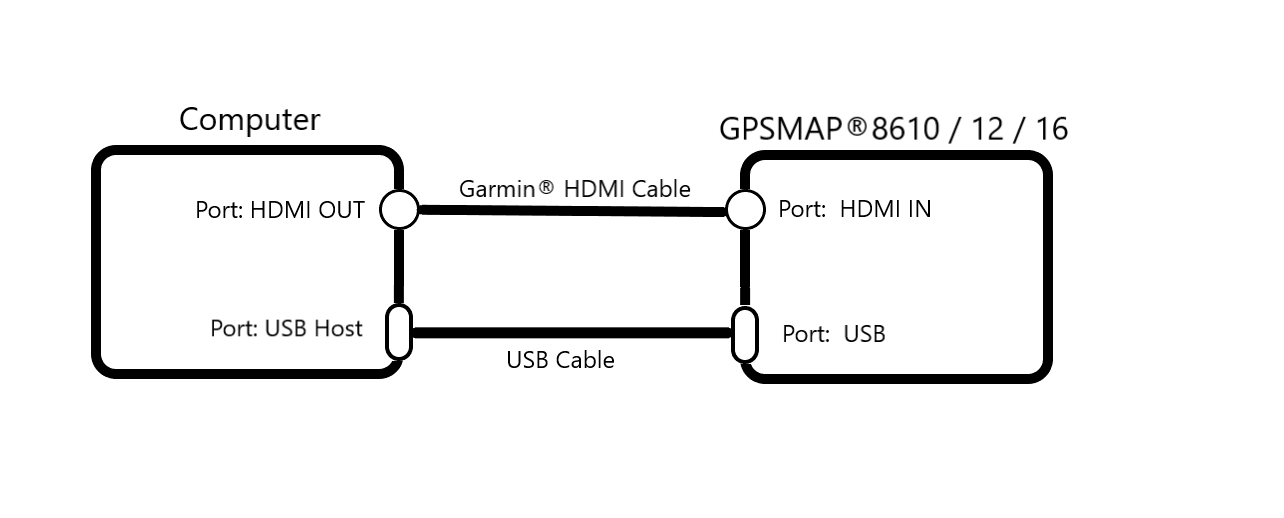

GPSMAP® 8X10 GPSMAP® 8X12 GPSMAP® 8X16 Chartplotter | The GPSMAP® Chartpotter's touchscreen controls a connected computer Select Image to Enlarge HDMI and USB Connections
| Yes | Garmin USB Cable: GPSMAP® Chartpotter USB Port to Computer USB (Host) Port | No | N/A |

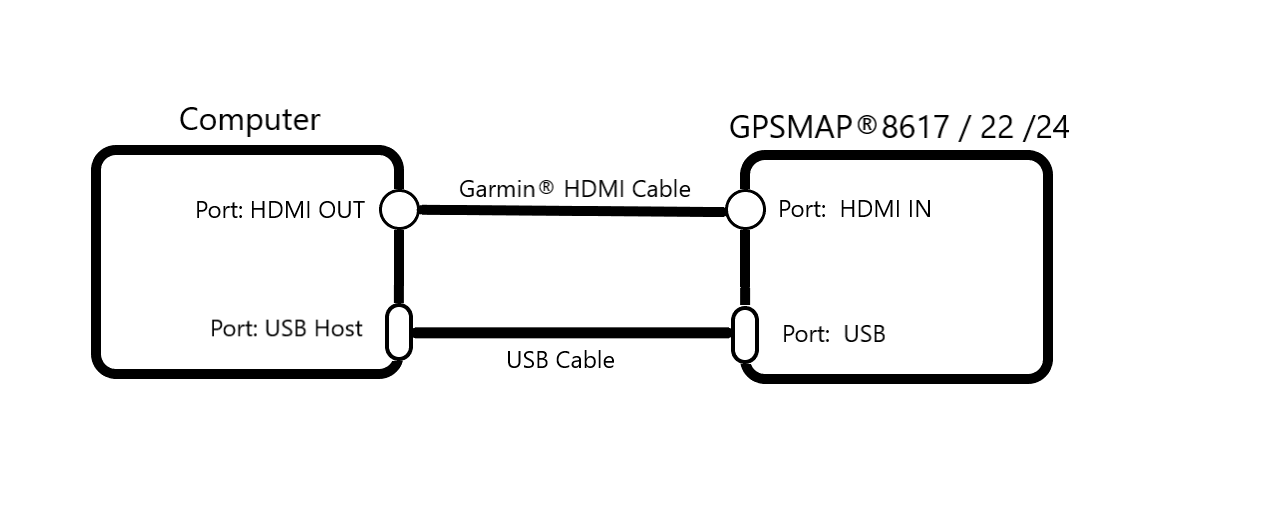

| GPSMAP® 8X17 GPSMAP® 8X22 GPSMAP® 8X24 MFD | GPSMAP® MFD touchscreen controls a connected computer Select Image to Enlarge HDMI and USB Connections
| Yes | Garmin USB Cable: GPSMAP® MFD USB Port to Computer USB (Host) Port | No | N/A |
| GPSMAP® 8700 Black Box | A connected touchscreen monitor, or GPSMAP® Chartplotter, has touchscreen control of a connected computer Select Image to Enlarge HDMI and USB Connections
| Yes | Garmin USB Cable: GPSMAP® Black Box USB OTG Port to Computer USB (Host) Port | Yes | Touchscreen Monitor's USB Port to GPSMAP® Black Box USB (Host) Port |

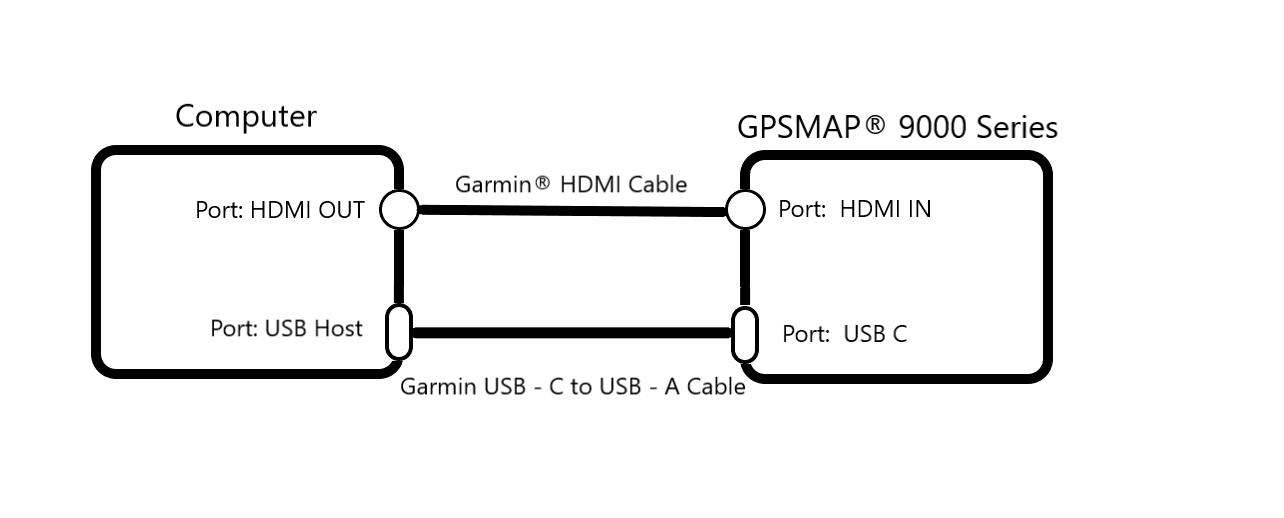

| GPSMAP® 9X19 GPSMAP® 9X22 GPSMAP® 9X27 MFD | The GPSMAP® Chartplotter's touchscreen controls a connected computer Select Image to Enlarge HDMI and USB Connections
| Yes | Garmin USB-C to USB-A Male Adapter Cable: GPSMAP® Chartplotter DRD USB Port to Computer USB (Host) Port | No | N/A |

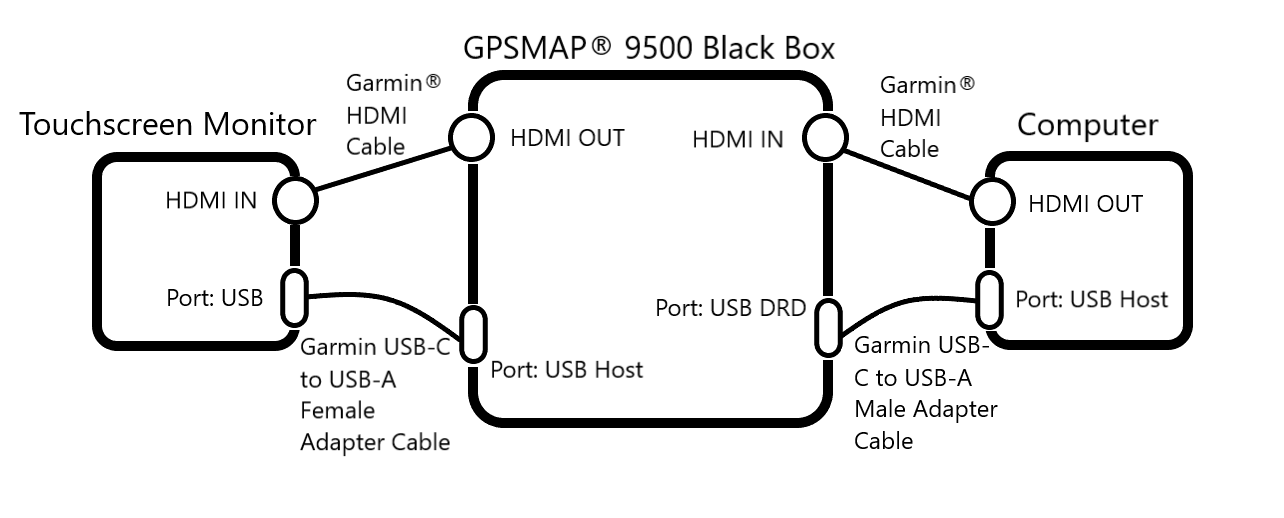

| GPSMAP® 9500 Black Box | A connected touchscreen monitor, or GPSMAP® Chartplotter, has touchscreen control of a connected computer Select Image to Enlarge HDMI and USB Connections
| Yes | Garmin USB-C to USB A Male Adapter Cable: GPSMAP® Black Box USB DRD Port to Computer USB (Host) Port | Yes | Garmin USB-C to USB-A Female Adapter Cable: Touchscreen Monitor USB Port to GPSMAP® Black Box USB (Host) Port |
USB Port Labels and Port Connection Types
| Device | Port Label | Port Connection Type |
| GPSMAP® 8X10 GPSMAP® 8X12 GPSMAP® 8X16 Chartplotter | USB | Female microUSB |
| GPSMAP® 8X17 GPSMAP® 8X22 GPSMAP® 8X24 MFD | USB | Female microUSB |
| GPSMAP® 8700 Black Box | OTG and USB | Female microUSB |
| GPSMAP® 9X19 GPSMAP® 9X22 GPSMAP® 9X27 MFD | DRD and USB | Female USB-C |
| GPSMAP® 9500 Black Box | DRD and USB | Female USB-C |
Note:
• To prevent corrosion due to moisture, you must use Garmin GPSMAP® accessory cables when connecting the GPSMAP® chartplotter, MFD or Black Box to the video source or display.
• Do not connect a media player stick directly into the back of the chartplotter. Using different cables or connecting a media player stick into the back of the GPSMAP® chartplotter, MFD or Black Box voids warranty.
HDMI video is shared across the Garmin BlueNet™ network and across the Garmin Marine Network, but it is not shared across the NMEA 2000® network.
GPSMAP® Chartplotter / MFD / Black Box HDMI Connections
GPSMAP® 12X3, GPSMAP® 16X3 Chartplotter | No | N/A | No | N/A | Yes (No HDCP Video Input) | Garmin HDMI® Cable: Chartplotter’s HDMI OUT Port connected to the Monitor’s HDMI IN Port |
| GPSMAP® 8X10, GPSMAP® 8X12 Chartplotter | Yes (Includes HDCP displayed on the chartplotter) | Garmin HDMI® Cable: The Video Input Source uses HDMI OUT Port connected to Chartplotter’s HDMI IN Port¹ | Yes¹ | GPSMAP® USB OTG Adapter Cable: Chartplotter's USB Port to the Video Input Source's USB Port | Yes (No HDCP output across Marine Network or to external displays) | Garmin HDMI® Cable: Chartplotter’s HDMI OUT Port connected to the Monitor’s HDMI IN Port |
| GPSMAP® 8X17, GPSMAP® 8X22, GPSMAP® 8X24 MFD | Yes (Includes HDCP displayed on the chartplotter) | Garmin HDMI® Cable: The Video Input Source uses HDMI OUT Port connected to Chartplotter’s HDMI IN Port¹ | Yes¹ | GPSMAP® USB OTG Adapter Cable: Chartplotter's USB Port to the Video Input Source's USB Port | Yes (No HDCP output across Marine Network or to external displays) | Garmin HDMI® Cable: Chartplotter’s HDMI OUT Port connected to the Monitor’s HDMI IN Port |
| GPSMAP® 8700 Black Box | Yes (Does not display HDCP content) | Garmin HDMI® Cable: The Video Input Source uses HDMI OUT Port connected to Black Box’s HDMI IN Port¹ | Yes¹ Select Example Image to Enlarge
| GPSMAP® USB OTG Adapter Cable: Black Box's USB Port to the Video Input Source's USB Port | Yes (No HDCP output across Marine Network or to external displays) | Garmin HDMI® Cable: Black Box’s HDMI OUT Port connected to the Monitor’s HDMI IN Port |
| GPSMAP® 9X19, GPSMAP® 9X22, GPSMAP® 9X27 MFD | Yes (Includes HDCP content displayed on the chartplotter) | Garmin HDMI® Cable: The Video Input Source’s HDMI OUT Port connected to the Black Box HDMI IN Port² | Yes² | GPSMAP® Adapter Cable: Chartplotter's USB DRD or USB port to the Video Input Source’s USB Port | Yes (HDCP output can be shared through the Garmin BlueNet™ network, but will not share on the marine network. HDCP output can be shared to displays on external screens that support HDCP content) | Garmin HDMI® Cable: Chartplotter’s HDMI OUT Port connected to the Monitor’s HDMI IN Port |
| GPSMAP® 9500 Black Box | Yes (Includes HDCP displayed on an external monitor that supports industry HDCP standards) | Garmin HDMI® Cable: The Video Input Source’s HDMI OUT Port connected to the Black Box HDMI IN Port² | Yes² | GPSMAP® Adapter Cable: Black Box's USB DRD or USB port to the Video Input Source’s USB Port | Yes (HDCP output can be shared through the Garmin BlueNet™ network, but will not share on the Marine Network. HDCP content can be viewed on an external monitor that supports industry HDCP standards.) | Garmin HDMI® Cable: Black Box’s HDMI OUT Port connected to the Monitor’s HDMI IN Port |
¹If the media player requires being powered by the GPSMAP® chartplotter, MFD or Black Box, such as a Chromecast™, then a Garmin GPSMAP USB OTG adapter cable is needed in addition to the video input cable. The USB port can supply up to 2.5 W to power a media player stick.
² If the media player stick requires being powered by the GPSMAP® chartplotter, MFD or Black Box, then a Garmin adapter cable (such as a USB C to Micro USB Adapter Cable, 010-12390-13) is needed in addition to the video input cable. The USB DRD port on a GPSMAP® 9000 series MFD or Black Box can supply up to 2.5 W to power a media player stick. The USB port on a GPSMAP® 9000 series MFD or Black Box can supply up to 4.5 W to power a media player stick.
For GPSMAP® chartplotters, MFDs or Black Boxes that do not support protected HDMI® video sources (HDCP) some video sources may allow HDCP to be turned off at the source. Check the video source's manual to verify.
The Garmin HDMI® accessory cable is 4.5 m (15 ft) long. If you need a longer cable, you should use an active HDMI cable only. You will need an HDMI coupler to connect the two HDMI cables.
