Creating Picture-in-Picture Videos in the Garmin Drive App

The Garmin Drive™ app allows you to create picture-in-picture videos if you have at least two lenses recording video.

• The Garmin Dash Cam™ Tandem comes with two lenses and is compatible with picture-in-picture when it is the only camera being used.

• Other Garmin Dash Cams will require at least two cameras.

  • You can use any combination of two lenses paired with the Garmin Drive app as long as they were recording video at the same time.
  • See Using Dash Cam Video Sync to Connect/Pair Multiple Garmin Dash Cams with the Garmin Drive App.

To Create a Picture-in-Picture Video:

See the detailed videos below for instructions.

Android

Apple

Create a Picture-In-Picture Video written instructions:

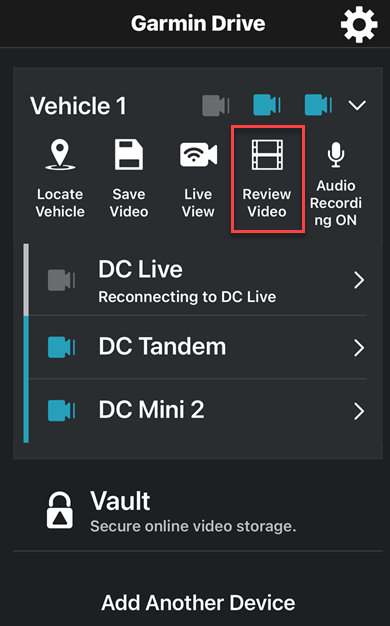

1. Open the Garmin Drive app and touch Review Video

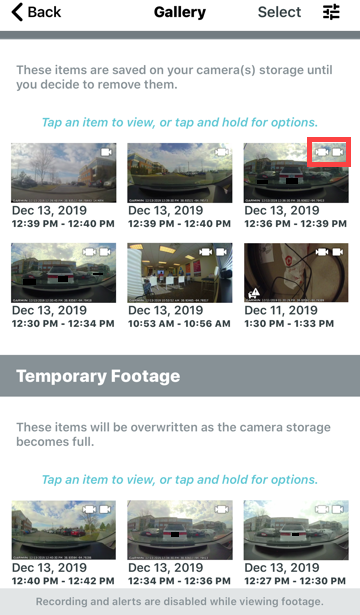

2. Select a multi-camera video

• • These have two camera icons in the top right corner.
  • The Garmin Dash Cam Tandem will have an icon showing a lens on both sides of the camera.

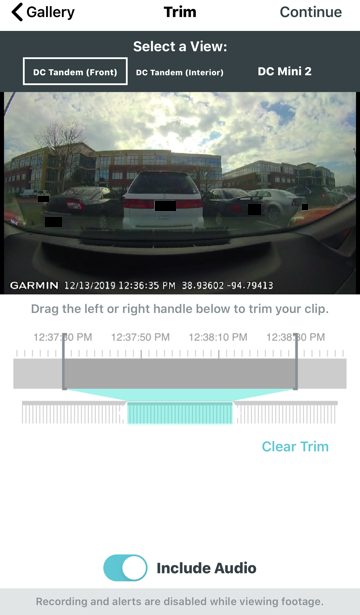

3. On the Trim Screen you can drag the handles on the video progress bar left or right to trim the video length

• • You can select two different views to trim.
  • Trimming can only be done on this screen.

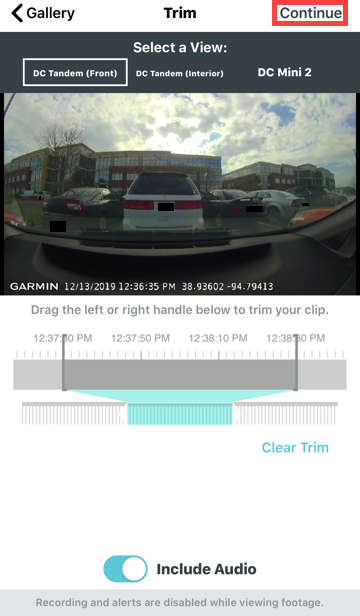

4. Select the camera view to use as the full-screen portion of video and touch Continue or the upper-right arrow

5. Select the camera view to use as the picture-in-picture portion of the video

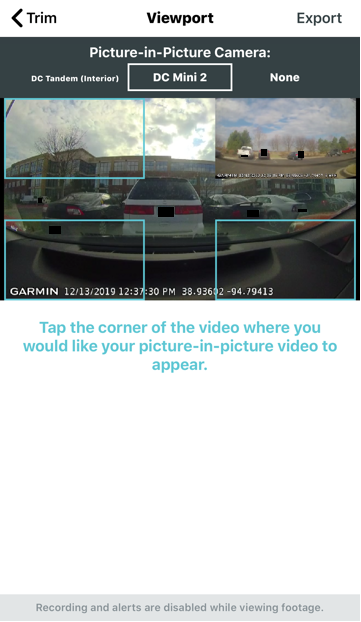

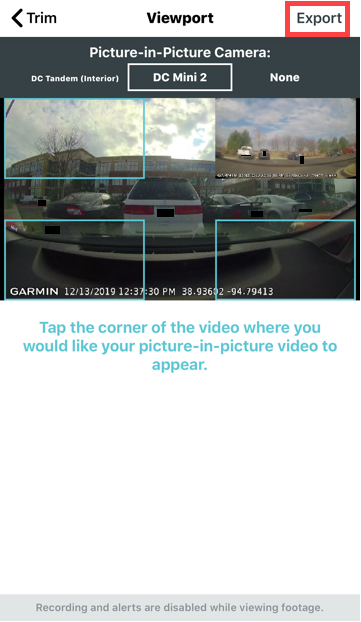

6. Touch the corner of the screen where you want the picture-in-picture video to appear and touch Export or the upper right arrow

• • You must keep the app in the foreground when exporting a video.

7. Touch Save to Phone

8. Touch Allow if prompted

You can use the sharing options on your phone to save the video or share it externally.
