Garmin StreetCross App and Y-Connect App Setup Structure

Setup Structure:

Handle Switch

Meter

• Image from Yamaha CCU

Communicates with Yamaha CCU using a Controller Area Network (CAN) bus.

Yamaha CCU with display

Communicates to Smartphone via Bluetooth using three methods

• • SPP
  • Communication system built into current Apple products and compatible accessories (iAP2)
  • Bluetooth Low Energy (BLE)

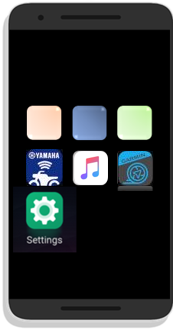

Smartphone

Communicates with rider via Bluetooth providing three forms

• • Media
  • Calls
  • Text-to-Speech (TTS) voice communication

Rider
