Customizing the Data Fields on the Tread® XL Baja Chase Edition and Tread® XL Baja Race Edition

Your Tread® allows you to customize the data fields on the navigation screen.

To Change the Data Field:

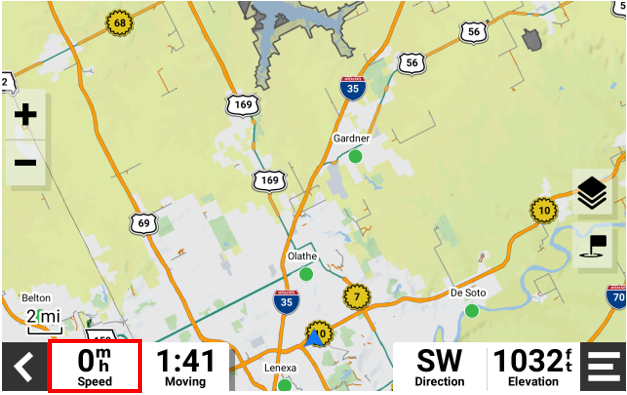

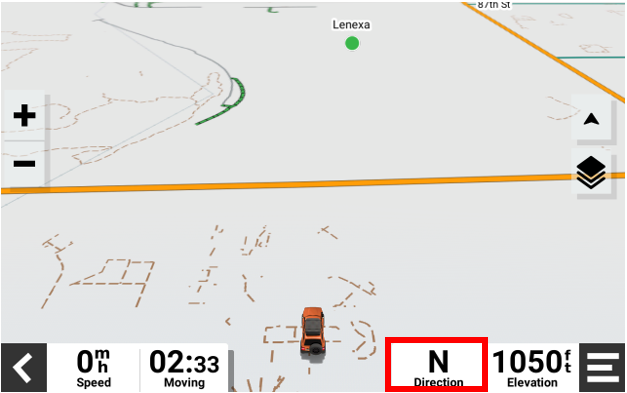

1. Touch Chase Map

2. Touch a data field that does not display Speed



3. Touch "+" next to the desired option to save the change

This selected data will now be displayed in the data field while driving.

It is possible to add additional data fields on the map by enabling the Trip Data map tool on the device.

To Enable Trip Data:

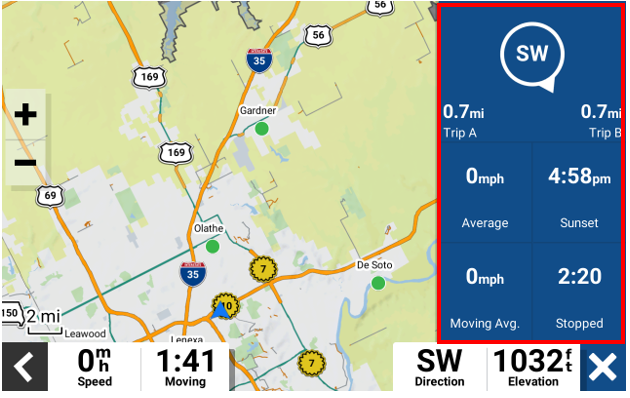

1. Touch Chase Map

2. Touch the Speed data field



Additional data fields will appear on the right side of the screen. You can customize these by touching any one of them, then touching the + icon next to the desired data type, which will automatically change the type of data displayed.



Your device offers the following customizable data field options:

Available with or without routeAvailable during active route only
  • Direction
  • Elevation
  • GPS Accuracy
  • Location (coordinates)
  • Recorded Track Distance
  • Sunrise/ Sunset Time
  • Total Average Speed
  • Total Max. Speed
  • Total Moving Average Speed
  • Total Moving Time
  • Time of Day
  • Total Stopped Time
  • Total Time
  • Trip A
  • Trip B
  • Arrival time
  • Distance to destination
  • Distance to the next stop
  • Distance to turn
  • Next stop arrival time
  • Time to destination
  • Time to next stop
  • Time to turn
