How to View Jeppesen Terminal Charts in Garmin Pilot for iOS

From the Charts page on the Garmin Pilot™ iOS aviation app :

  1. After a flight plan has been added, select the Charts page.
    • Garmin Pilot Charts Tab


  2.  Once the Charts page has been selected, you will notice two binders will be automatically created, including charts for both the departure and destination airports.


  3.  Jeppesen Terminal Charts can also be viewed from the Map page in split screen mode.


  4. Once you have a chart selected from Split Screen, you can select Map to view the selected Chart overlaid on the Map.
    • Chart Overlay 1

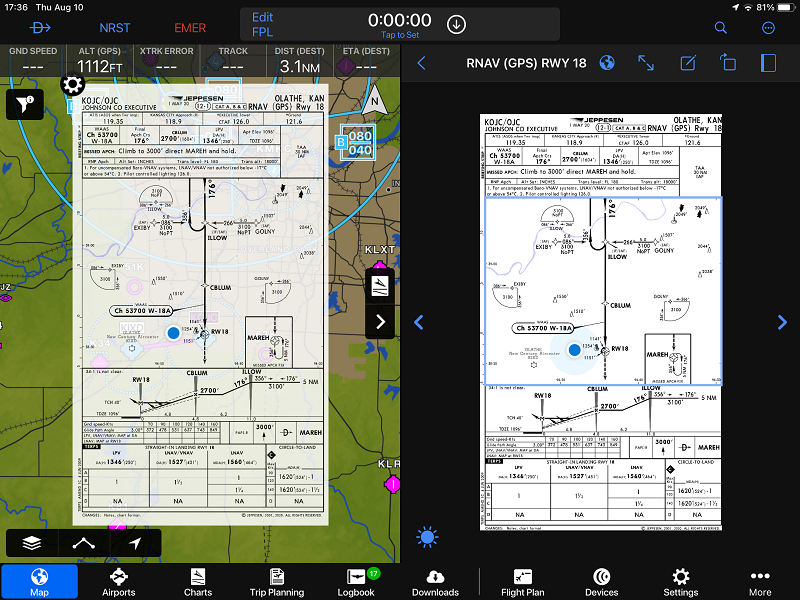

    • Chart Overlay 2


  5. To remove the Chart from the Map, select the Settings gear in the top left of the Chart, and then select Remove.


  6. Your Jeppesen Terminal Charts can also be viewed from the Airports page after selecting charts:

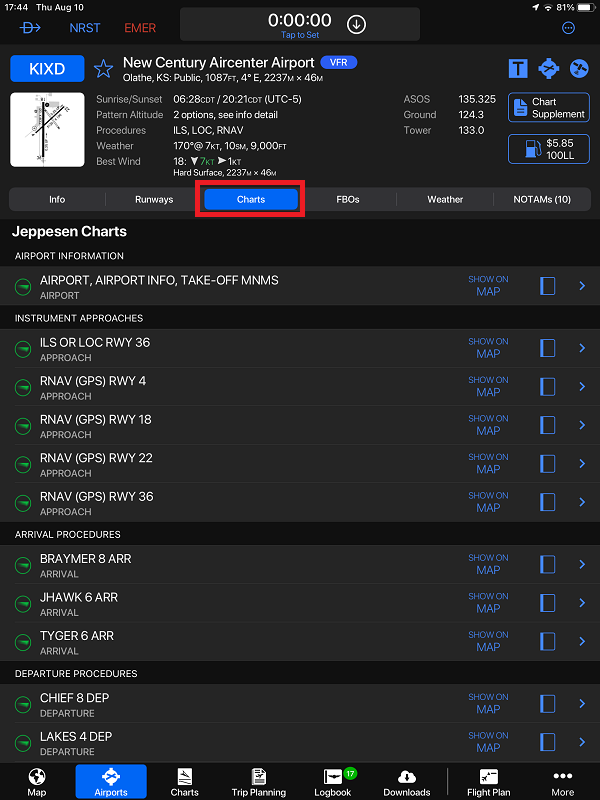

    • Airport Page Charts

 For more information about Garmin Pilot, click here.
